Syringe Plunger Glide Force Test: Ensuring Safety and Reliability in Medical Devices

The syringe plunger glide force test is an essential procedure in the medical device industry, ensuring that syringes function safely and effectively. This test measures the force required to move the syringe plunger smoothly, a key indicator of the syringe’s overall design and usability. In this article, we will explore the syringe plunger glide force test in detail, discuss its significance, and highlight the importance of using precise testing instruments, like the MST-01 Medical Syringe Tester, to meet industry standards.

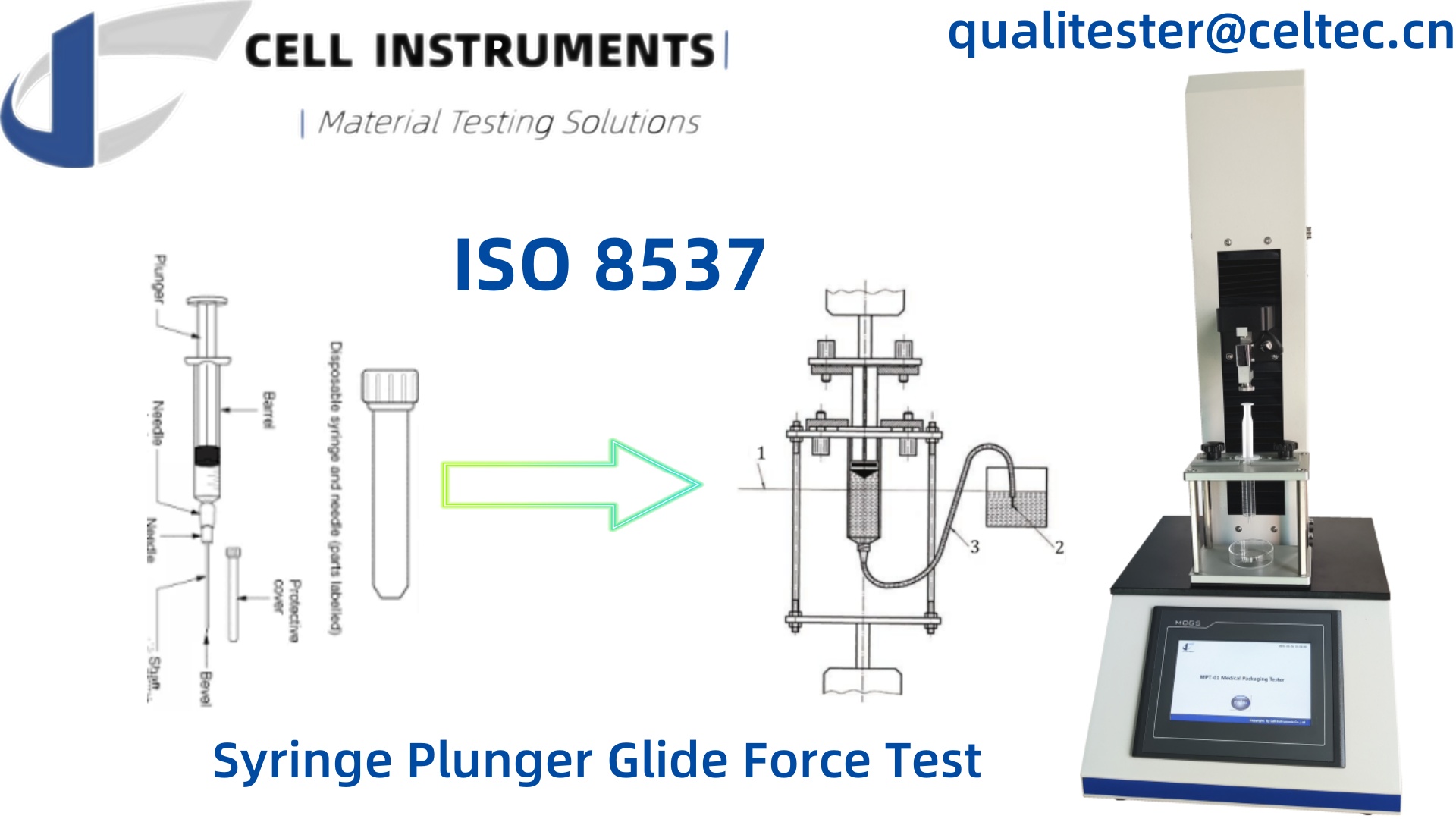

Syringe Plunger Glide Force Test Q

The Importance of Syringe Plunger Glide Force Testing

Syringe plunger glide force testing evaluates the ease of movement of the plunger inside the barrel of the syringe. A smooth glide is essential for preventing difficulties during injection or aspiration, ensuring patient safety and comfort. A plunger that is too stiff or too loose can cause issues, such as difficulty in administering the fluid or inaccurate dosages.

Testing the glide force also verifies the syringe’s compliance with safety standards, like ISO 8537, which outlines specific requirements for the performance of prefilled syringes. These tests assess how much force is necessary to move the syringe plunger from the start to the end of its stroke, and are crucial in determining the product’s quality before it reaches the market.

How the Syringe Plunger Glide Force Test Is Conducted

The procedure for conducting the syringe plunger glide force test is straightforward but requires precision to yield accurate results. Here’s a breakdown of the steps involved:

  1. Syringe Preparation: The syringe is filled with distilled water to 50% of its nominal capacity. This ensures the testing process is consistent and not influenced by the type of fluid the syringe will eventually hold.
  2. Fixture Setup: The syringe is clamped onto a suitable test stand, with the needle facing downward. The test machine applies a vertical downward force on the plunger, gradually increasing the force until movement is detected.
  3. Force Measurement: A force gauge measures the force required to initiate movement of the plunger. This is often indicated by the expulsion of water from the syringe’s needle. The force applied must be continuously recorded during the test to determine the smoothness of the plunger’s movement.
  4. Data Analysis: The test records both the force required to initiate movement and the maximum force needed to depress the plunger fully. This data is essential for quality control and product certification.

By adhering to these methods, manufacturers ensure the syringes meet stringent performance criteria, as outlined in ISO 8537 and other relevant standards.

ISO 8537 and Its Role in Syringe Testing

ISO 8537 is a key standard in the syringe manufacturing industry, detailing requirements for prefilled syringes. It specifies the tests for evaluating the mechanical properties of the syringe, including the plunger glide force. The standard ensures that syringes perform consistently under normal conditions, guaranteeing that the plunger glides smoothly without excessive resistance or instability.

According to ISO 8537, the syringe plunger glide force must remain within specific limits to pass the test. A syringe that exceeds the acceptable force range can be deemed faulty, potentially leading to a poor user experience or, worse, medical errors during injection.

Using the MST-01 Medical Syringe Tester

The MST-01 Medical Syringe Tester is an excellent tool for conducting syringe plunger glide force tests. This precision instrument allows for accurate measurement of the force required to operate the syringe plunger, as well as other related tests, such as syringe sliding resistance, needle penetration, and plunger pull-out tests. With its user-friendly interface, the MST-01 provides detailed reports and ensures that the testing process aligns with ISO 8537 and other relevant standards.

Key features of the MST-01 include:

  • Multiple Test Programs: The MST-01 offers specialized programs for a wide range of syringe tests, including glide force, making it a versatile tool for syringe quality assurance.
  • High Precision: With an accuracy of 0.5% full scale, the MST-01 delivers reliable results for each test.
  • Automated Testing: The machine operates with automated controls, ensuring consistency and reducing human error in the testing process.

Common Questions About Syringe Plunger Glide Force Testing

1. What is the syringe plunger glide force test?
The syringe plunger glide force test measures the amount of force required to move the syringe plunger smoothly inside the barrel, ensuring it functions properly during use.

2. Why is the syringe plunger glide force test important?
This test ensures the syringe is easy to operate, reducing the risk of injection issues and ensuring patient safety during use.

3. How is the syringe plunger glide force test performed?
The syringe is filled with distilled water, attached to a test stand, and a downward force is applied to the plunger. The required force is measured until the plunger moves.

4. What standards should the syringe plunger glide force test adhere to?
The test must comply with ISO 8537, which specifies the acceptable glide force limits for prefilled syringes to ensure safety and effectiveness.

5. Can the MST-01 Medical Syringe Tester be used for other syringe tests?
Yes, the MST-01 can conduct various tests, including syringe sliding resistance, plunger pull-out, and needle penetration tests, making it a comprehensive testing solution.

Related Product

Syringe Plunger Glide Force Tester

Related Article

Syringe Breakaway Force Testing

Syringe Glide Force Testing

Reference

USP 382

ISO 7886-1

ISO 8537

ISO 11040-4

ISO 11608-5
