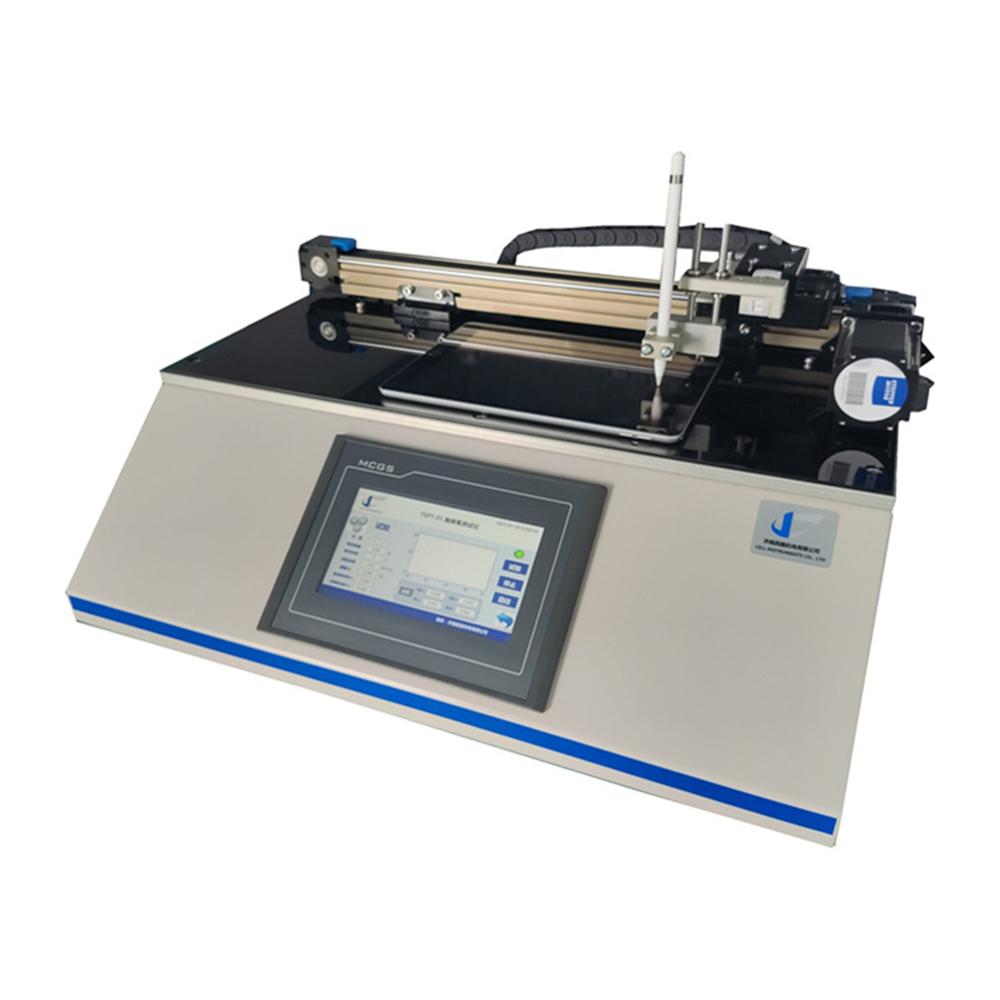

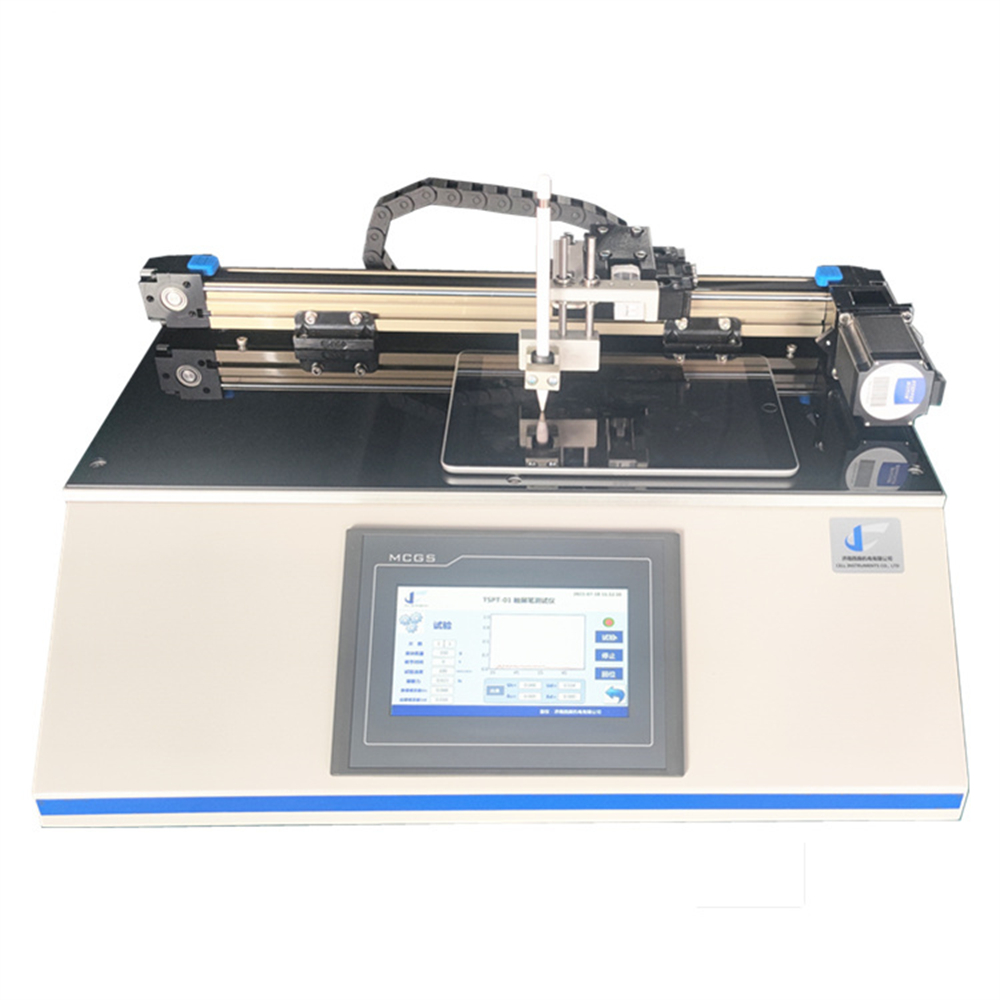

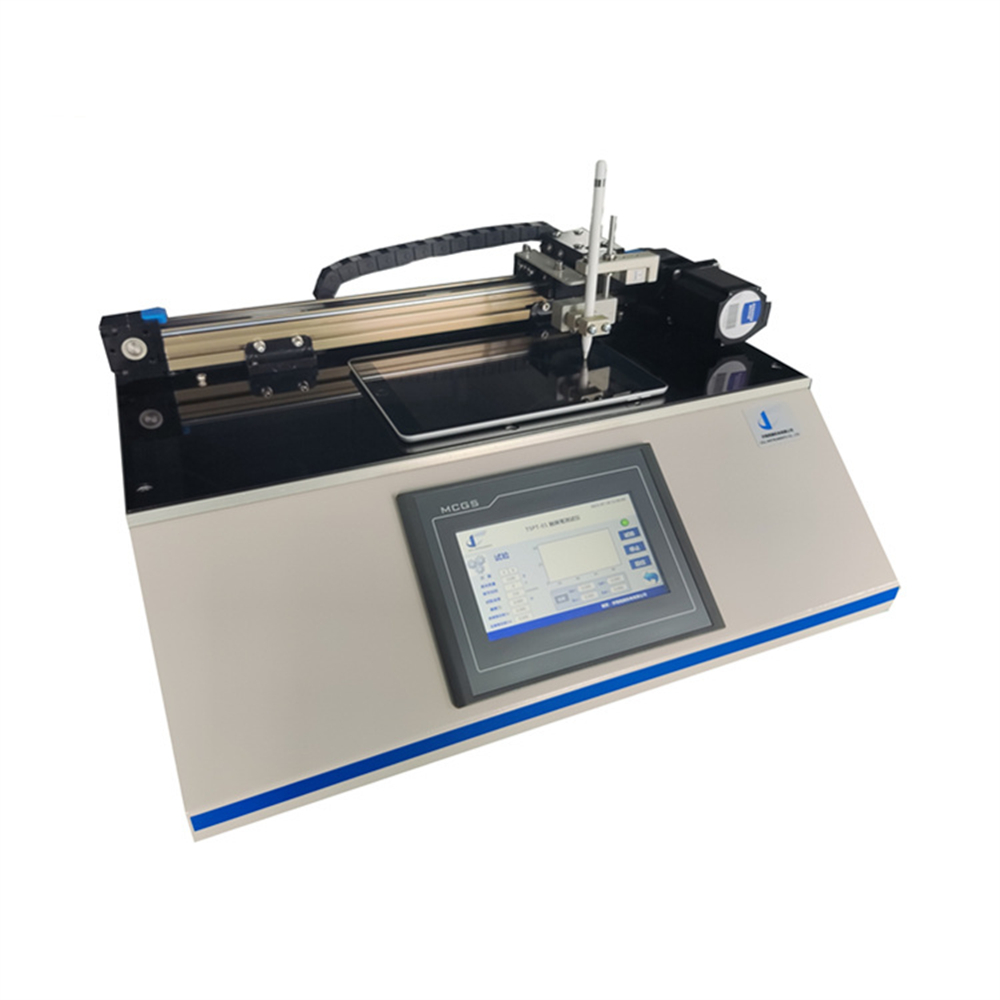

TSTP-01 Stylus Pen Sliding and COF Tester

The Smart Pen Coefficient of Friction Tester is a specialized instrument designed to evaluate and optimize the performance of stylus pens through precise friction and durability testing. This state-of-the-art tester is essential for manufacturers and R&D laboratories focused on enhancing user experience, accuracy, and longevity in stylus products. By offering detailed insights into frictional properties and wear resistance, the Smart Pen Coefficient of Friction Tester enables product refinement, ensuring that stylus pens meet the highest standards for quality and durability.

Introduction to the Smart Pen Coefficient of Friction Tester

The Smart Pen Coefficient of Friction Tester is a specialized instrument designed to evaluate and optimize the performance of stylus pens through precise friction and durability testing. This state-of-the-art tester is essential for manufacturers and R&D laboratories focused on enhancing user experience, accuracy, and longevity in stylus products. By offering detailed insights into frictional properties and wear resistance, the Smart Pen Coefficient of Friction Tester enables product refinement, ensuring that stylus pens meet the highest standards for quality and durability.

Key Features of the Smart Pen Coefficient of Friction Tester

  • Dual Testing Modes for Comprehensive Analysis

    • Sliding Test Mode: Simulates repeated linear back-and-forth motions to measure the wear resistance of stylus pens, allowing for in-depth analysis of their durability over prolonged use. This mode is crucial for assessing the lifespan and endurance of the stylus under regular conditions.
    • Coefficient of Friction (COF) Mode: Precisely measures the frictional characteristics of the stylus tip as it interacts with various screen surfaces. This assessment is essential for ensuring that the stylus provides the right balance of friction and precision, allowing for smooth, controlled strokes without excessive slippage or resistance.
  • User-Friendly and High-Precision Operation

    • The tester is equipped with PLC (Programmable Logic Controller) control and an intuitive HMI (Human Machine Interface) screen for streamlined, industrial-grade operation. These features ensure that the device is easy to operate, even in high-throughput lab settings.
    • A high-speed linear movement guide and a specially designed stylus holding jig provide stability and precision, delivering consistent, reliable results for quality control and product development.

Understanding the Stylus Pen Friction Test

In stylus pen manufacturing, achieving optimal friction levels is key to delivering a satisfying user experience, accuracy, and long-lasting performance. The Stylus Pen Friction Test (secondary keyword) performed by the Smart Pen Coefficient of Friction Tester provides valuable insights into these properties. This test measures how the stylus tip interacts with touchscreens, enabling manufacturers to fine-tune materials and designs for superior control and user comfort. It ensures that friction is maintained at an ideal level, allowing the stylus to glide smoothly across the screen while providing accurate pressure sensitivity for precise control.

Test Methods for Stylus Pen Friction Testing

  • Friction Test Setup: The stylus pen is affixed to the tester along with a specific weight and positioned vertically over a screen or touch panel. This setup applies a gravitational force, combining the weight of the stylus and the added weight, for realistic testing conditions.
  • Procedure Overview:
    • Users can set specific speeds and select testing modes based on requirements, tailoring the test to different stylus materials and design considerations.
    • Coefficient of Friction Measurement: This value provides a quantifiable metric for assessing and refining stylus tip materials, ensuring they meet desired friction levels.
    • Sliding Test for Durability: After repeated cycles, the sliding test measures wear, indicating how well the stylus tip withstands prolonged use. These results allow manufacturers to evaluate material longevity and make improvements where necessary.

Industry Standards and Compliance

The Smart Pen Coefficient of Friction Tester adheres to industry standards, including ASTM D1894 and ISO 8295, ensuring compliance with globally recognized friction testing guidelines. Compliance with these standards enhances the credibility of test results, making them suitable for international quality control and product certifications.

Technical Specifications of the Smart Pen Coefficient of Friction Tester

  • Force Range: 5N with 0.5%FS accuracy, ideal for replicating real-world stylus use conditions.
  • Speed Control: Adjustable from 1 to 12,000 mm/min with a precision of 0.1 mm/min, accommodating various test requirements.
  • Pressing Weight: 150g, simulating the weight typically applied during standard stylus operation.
  • Stroke Length: 350mm, enabling extended testing cycles for durability assessment.
  • Power Supply: 110-220V, compatible with most lab and industrial power standards for versatile deployment.

Applications of the Smart Pen Coefficient of Friction Tester

This tester is essential for R&D labs, manufacturers, and quality control departments in industries focused on electronic accessories, educational tools, and creative devices where stylus performance is critical. By providing reliable data on friction and durability, it enables companies to develop high-quality, user-friendly stylus pens tailored to customer needs in sectors including electronics, consumer technology, education, and entertainment.

FAQs on Smart Pen Coefficient of Friction Testing

  • What is the purpose of the stylus pen friction test?
    The friction test evaluates the interaction between a stylus pen tip and a screen surface, providing data on how much resistance or smoothness the stylus will have, which is essential for control and precision.
  • How does the sliding mode test benefit stylus durability assessment?
    The sliding mode measures wear on the stylus tip over repeated cycles, giving insights into how well the stylus will perform after prolonged use, a critical factor for longevity.
  • What are the industry standards for friction testing?
    ASTM D1894 and ISO 8295 are the main standards for friction testing in the context of stylus and other material assessments, providing guidelines for test conditions and accuracy.
  • How does friction affect stylus precision?
    Appropriate friction levels ensure the stylus responds accurately to user input, allowing for smooth, precise strokes that improve user control and satisfaction.
  • What types of screens can be tested with this equipment?
    This tester can evaluate frictional interactions between stylus tips and various screen types, making it versatile for testing across different devices and materials.

The Smart Pen Coefficient of Friction Tester is a powerful tool for stylus manufacturers seeking to enhance product quality and user satisfaction. By providing accurate friction and wear measurements, this instrument enables the development of stylus pens with ideal friction levels, durability, and precision. With its dual testing modes and high-precision operation, it is the perfect choice for quality control labs and product developers aiming to deliver superior stylus performance.
