Application

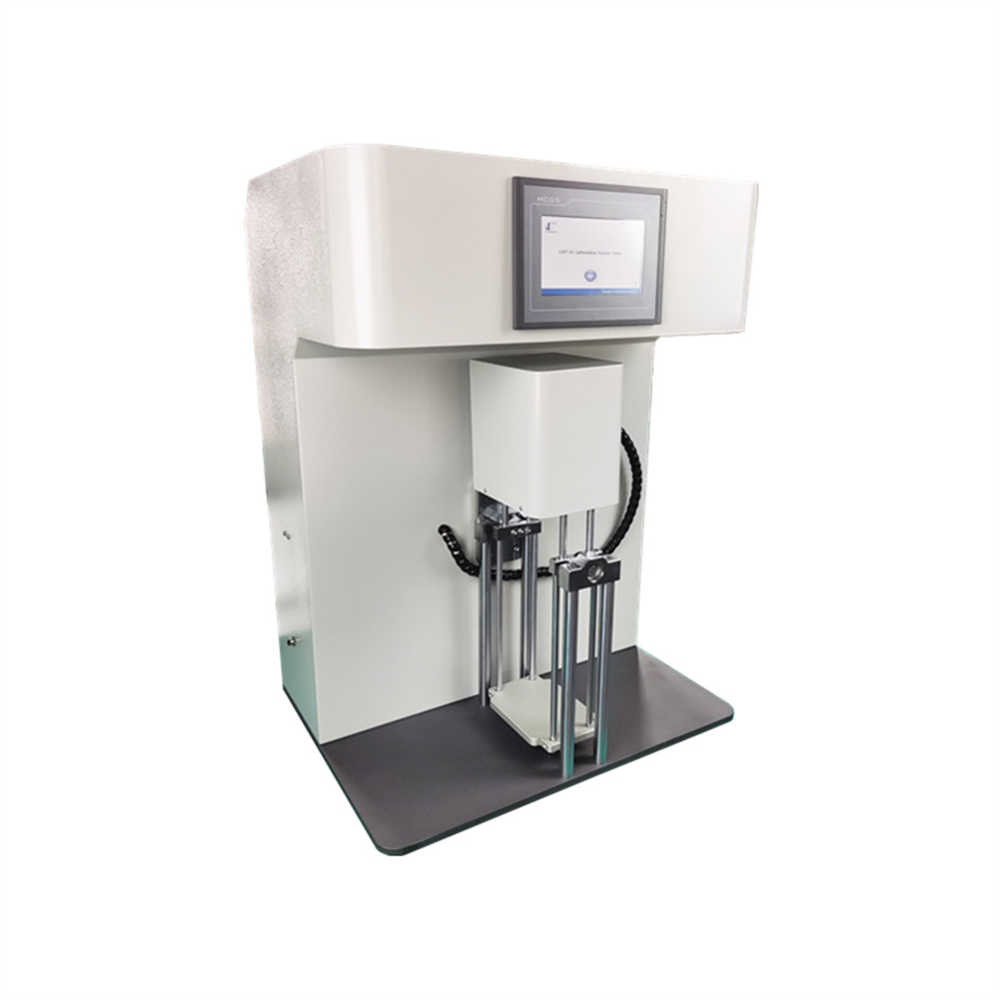

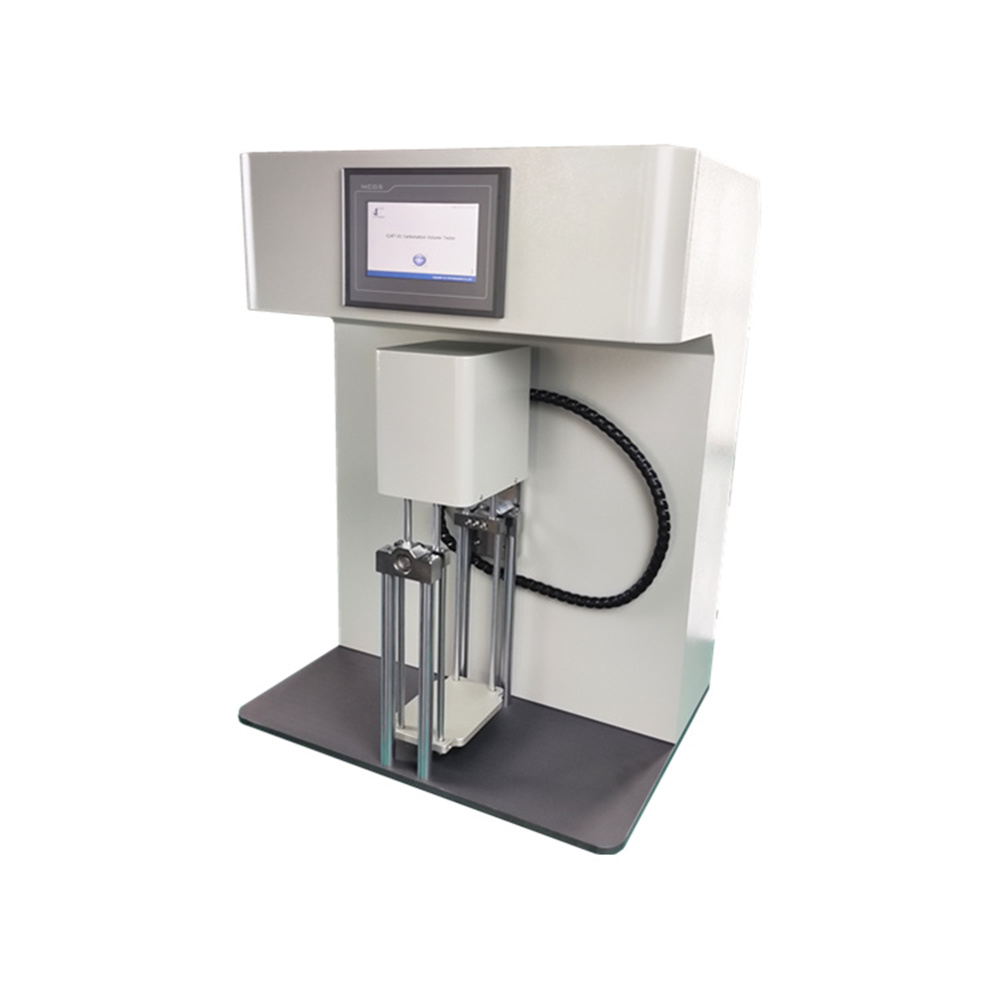

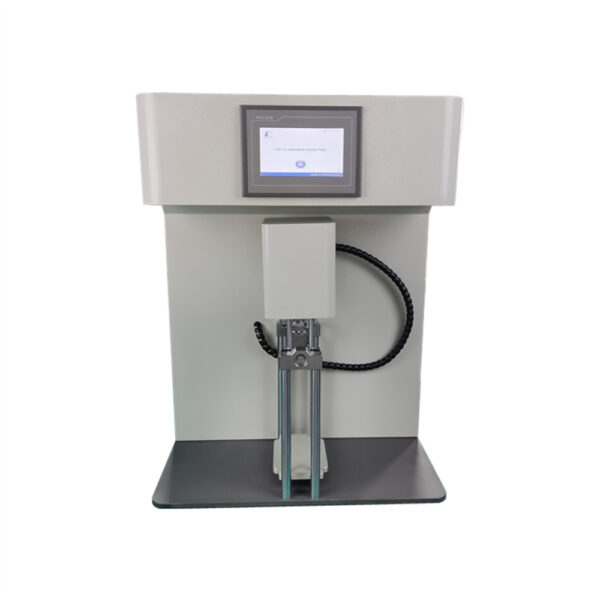

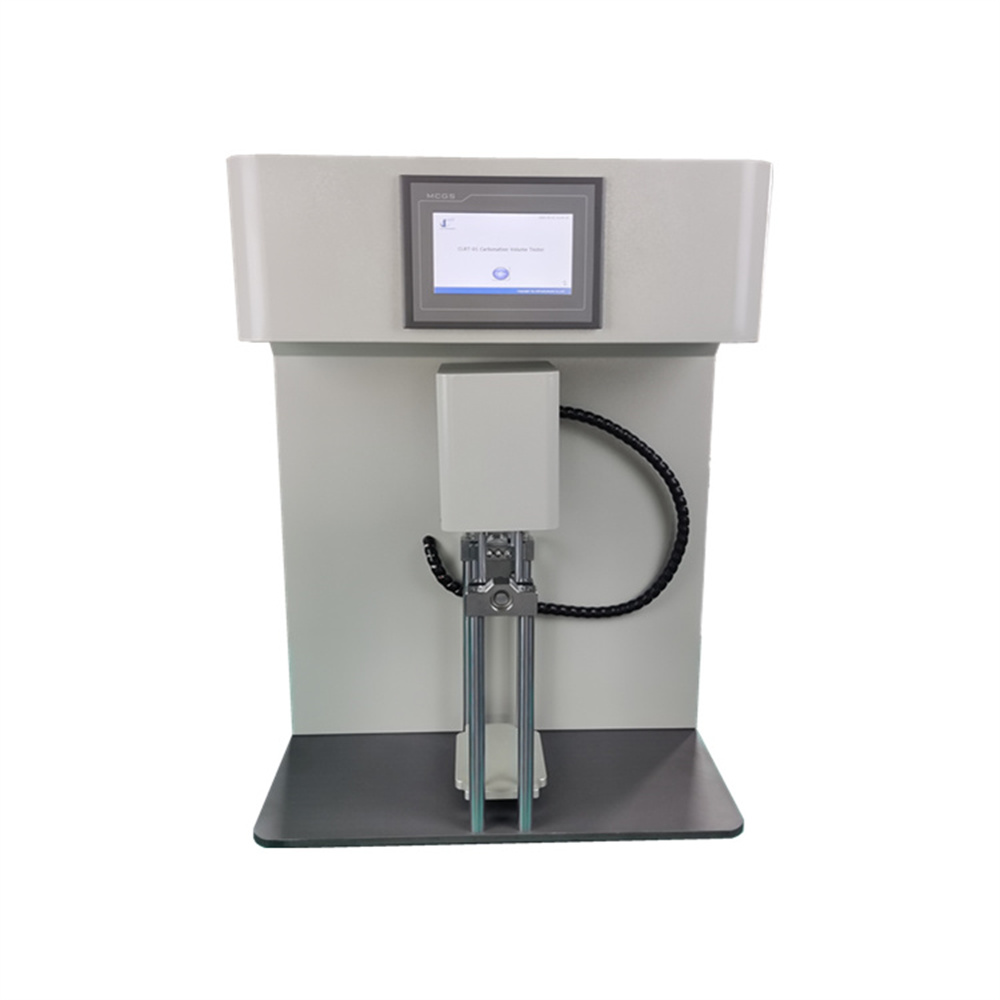

CLRT-01 Carbon Dioxide volume Tester is suitable for beverage CO2 volume testing and gives an automatic way to find out relationship between pressure and temperature.
Automatic Testing and Shaking
The tester makes below traditional manual process all automatic.
Pierce the bottle cap → open the vent valve to exhaust → close the vent valve → vibrate vigorously for 40seconds → record the MPa after the pressure stabilizes (measure the liquid temperature)→carbon dioxide gas capacity test results.
Technical Features
It’s a PLC controlled unit (industrial level stable) and HMI touch screen operated; Servo motor and gearbox transmittance for the agitation of sample bottle; Anti-leak design with precious temperature and pressure measurement.
- Dual motor design, separate control of piercing and shaking
- Precise control of piercing displacement and speed
- The shaking frequency and time can be customized
- High-precision pressure sensor guarantees the accuracy of test results
- High-precision temperature sensor, real-time display of current temperature
- After the test, the carbonation volume will be given automatically
- Microprinter(optional)
- RS 232 port and professional software(optional)
Main Parameters
Test Range 0~1MPa
Resolution 0.01KPa
Shaking Speed Adjustable
Piercing Speed 5mm/s (other available)
Sample Height ≤ 350mm (other available)
Temperature range 0 ~ 30 ℃
Shaking time 40s (other available)
Resolution 0.1 ℃
Major Standards
ASTM F1115, GB T10792
