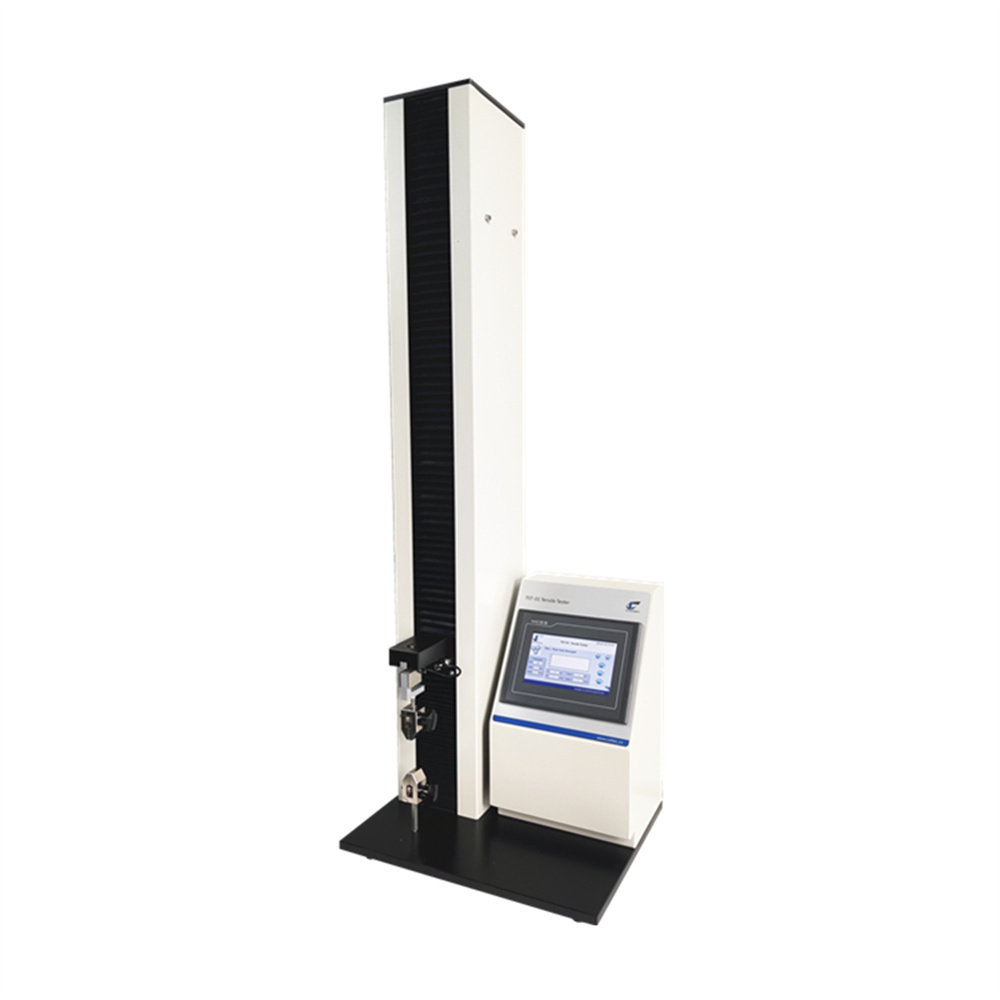

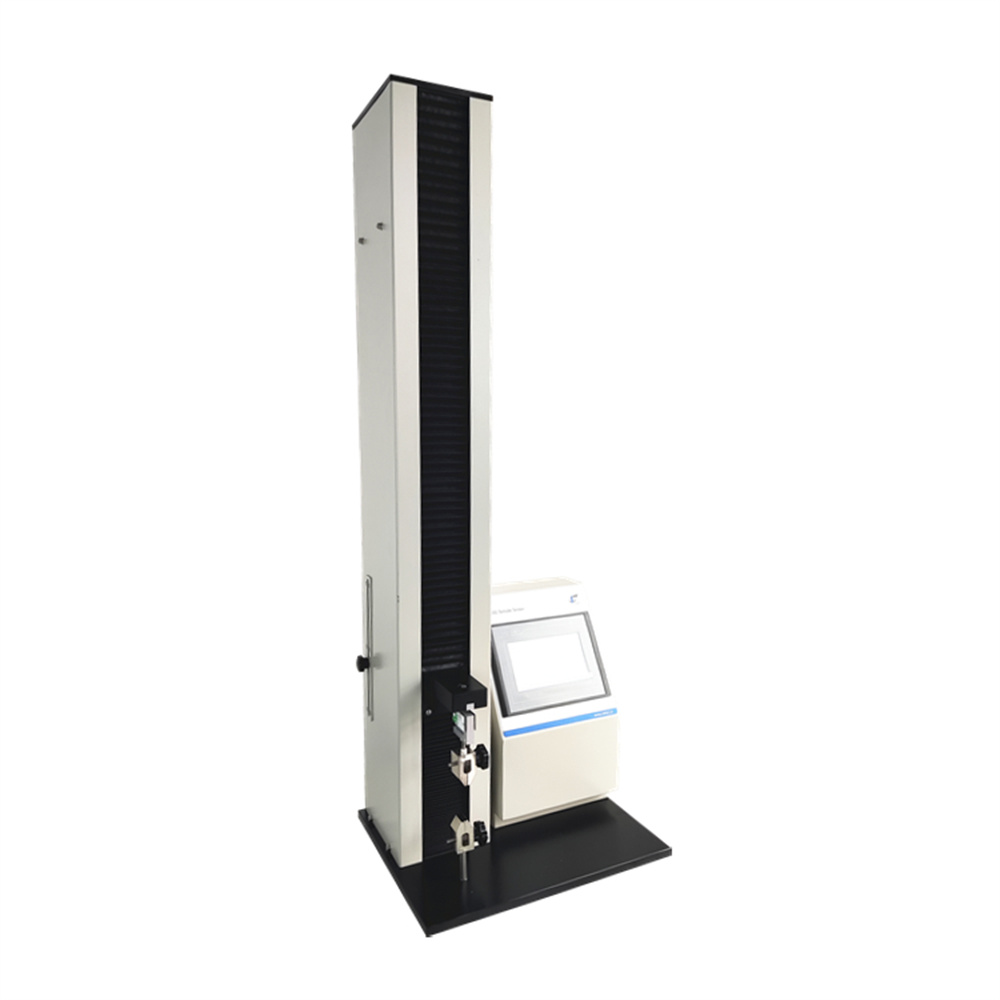

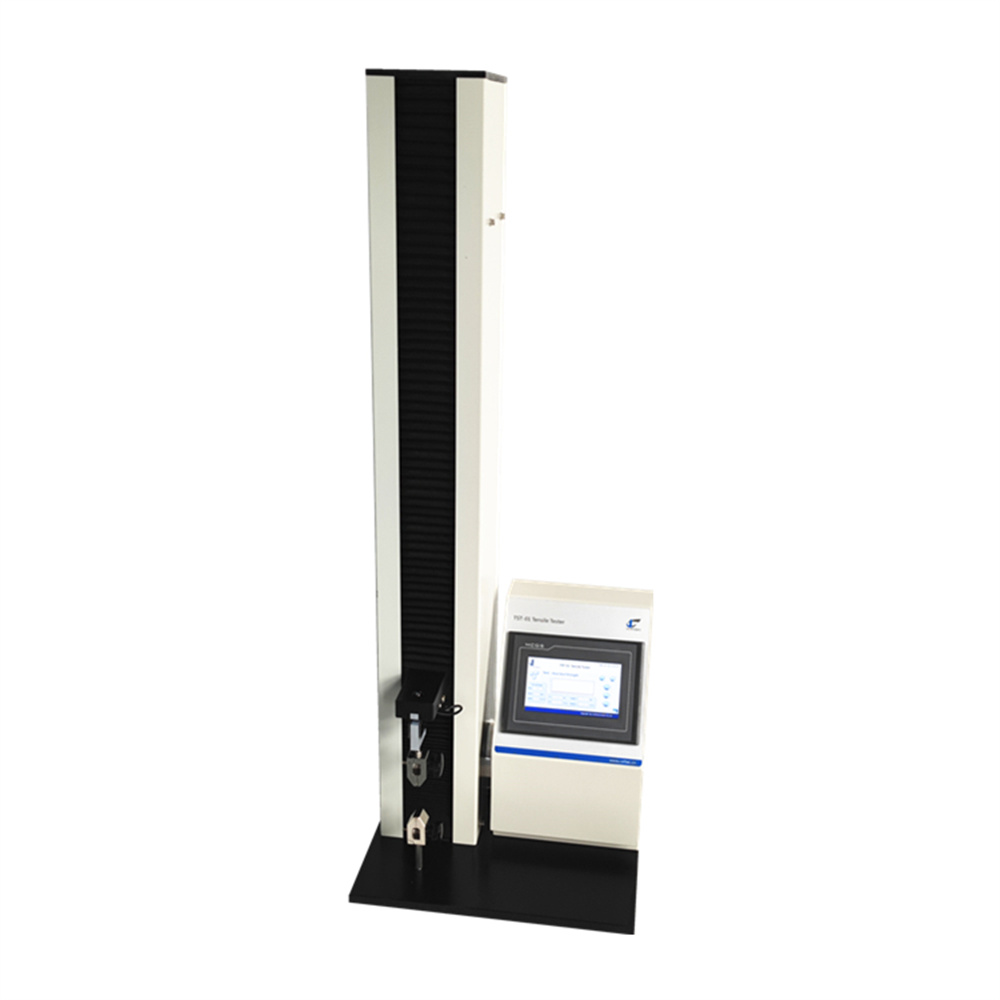

TST-01 Tensile Tester

TST-01 can be used to measure various physical and mechanical properties of materials.


TST-01Tensile Tester can be used to measure tensile, peeling, deformation, tearing, heat sealing, adhesive, puncture force, opening force and other performance of plastic films (needs different clamps or fixtures), composite materials, soft package materials, plastic flexible tube, adhesives, adhesive tape, label stickers, medical plasters, release paper, protection films, combined caps, aluminum foil, diaphragm, back sheets, non-woven fabrics, rubber, paper, etc.

Technical Features

It’s a PLC controlled unit (industrial level stable) and HMI touch screen operated. Precision ball lead screw mechanism ensures good and steady speed and displacement control. Its specially designed program can be used for testing of break, tension, elongation, seal strength, 90°peeling, 180° peeling, tearing.

  • 7 inch TFT touch screen operation
  • PLC control
  • Precision ball lead screw
  • Test speed adjustable.
  • Multiple fixtures available
  • Limiting device and automatic returning function
  • Multiple test items available.
  • Microprinter(optional)

Main Parameters

Test Range                           0-500N (Standard, 50N,100N,200N are optional)

Stroke                                    800mm (other strokes available)

Test Speed                            1~500mm/min

Displacement Accuracy   0.01mm

Accuracy                              0.5% F.S.

Sample Width                      27mm (other optional)

Control                                   PLC and human machine interface

Data Output                         Screen, Microprinter (optional), RS232(optional)

Major Standards

ISO 37, ASTM D882, ASTM E4, ASTM D3330, ASTM F904,ASTM F88, ASTM D1938, JIS P8113
