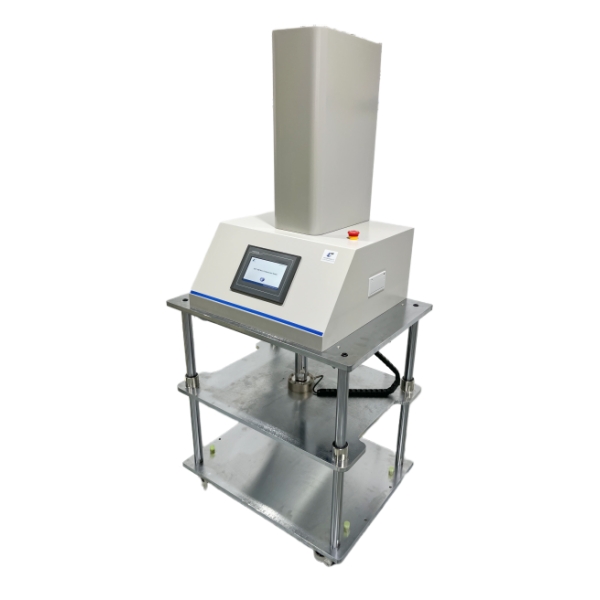

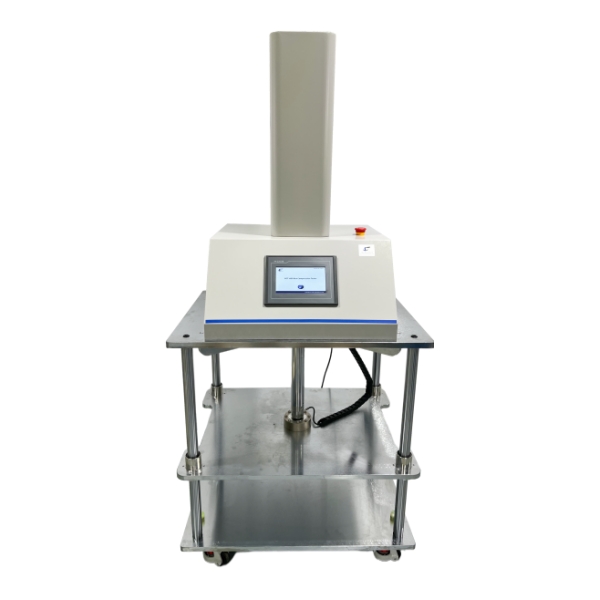

BCT-600 Box Compression Test Machine

Understanding the Role of a Box Compression Test Machine

The box compression test machine plays a vital role in ensuring the strength and reliability of packaging materials across various industries. In the logistics, warehousing, and e-commerce sectors, packaging resilience directly impacts product safety and operational efficiency. Using a box compression test machine allows manufacturers to evaluate the compressive strength of packaging, helping reduce damage risks and comply with international standards.

Applications of the Box Compression Test Machine

A box compression test machine assesses how packaging materials, such as corrugated boxes, plastic containers, and wooden crates, perform under compressive loads or stacking pressures. Key applications include:

• Corrugated boxes and fiberboard – Common in e-commerce, food, and beverage packaging.

• Plastic containers and drums – Essential in pharmaceutical, chemical, and daily chemical industries.

• Wooden crates and composite materials – Widely used in heavy machinery and automotive packaging.

• R&D and quality control – To optimize material thickness, validate designs, and confirm performance.

These machines serve packaging manufacturers, quality inspection agencies, and third-party testing laboratories, ensuring reliable and consistent results.

Box Compression Test Methods and Their Importance

The box compression test machine performs several critical test modes to evaluate packaging integrity:

• Crush Test (Top-Load/Compressive Strength Test)
  The crush test applies a steadily increasing force until the box fails or deforms significantly. It measures the peak load and deformation, ensuring that boxes can withstand handling and lifting stresses during shipping.
• Stacking Test (Constant Load Over Time)
  This test maintains a specified compressive load over a set time to simulate real-world warehouse stacking conditions. It measures long-term performance, highlighting the effects of material creep and gradual deformation.
• Fixed-Deformation Test
  The box is compressed to a predefined deformation point, recording the force required to reach or sustain this deformation. This test identifies how packaging materials behave at specific stress levels, providing insights into stiffness and load-bearing capacity.
• Fixed-Load (Creep) Test
  Applying a constant load over time, this test quantifies how the box deforms under continuous weight. It evaluates long-term durability and helps ensure that packaging maintains its dimensions during extended storage.

These tests collectively provide a comprehensive view of packaging performance under different stress scenarios, essential for maintaining product quality and logistics reliability.

Features and Benefits of the Box Compression Test Machine

Modern box compression test machines like the BCT-600 come equipped with advanced features to deliver precise and consistent results. Key features include:

• 7-inch touchscreen HMI with guided workflows and live curve display.

• Three independent test modes—strength, fixed-value, and stacking.

• Servo cylinder-driven motion for accurate platen movement at variable speeds.

• Embedded micro-printer for instant hard-copy results.

• Auto data capture with real-time display of force and deformation.

• Safety interlocks and mechanical end-stops to protect operators and sensors.

• High-rigidity frame with four-column guidance for consistent platen alignment.

• Precision load measurement using advanced load-cell sensors.

• Optional PC software for data export and comprehensive reporting.

These features ensure reliable data, repeatable results, and compliance with global standards.

Compliance with Global Standards

A box compression test machine is designed to meet a range of international testing standards, including:
ISO 2234, ISO 12048, ISO 2874, ISO 2872, ASTM D642, ASTM D4169, TAPPI T804, JIS Z0212, GB/T 4857.3, GB/T 4857.4, and QB/T 1047.
This ensures that your testing processes align with the highest quality benchmarks, enabling global market competitiveness.

Choosing the Right Box Compression Test Machine

For industries that rely on safe and secure packaging, the box compression test machine is an indispensable tool. It not only validates the compressive strength of packaging materials but also provides critical insights into their behavior under stacking and long-term storage.
At Cell Instruments Co., Ltd., we specialize in manufacturing high-performance box compression test machines tailored to your unique testing needs. With advanced automation and robust design, our instruments ensure accurate and efficient packaging validation for industries ranging from food and beverages to pharmaceuticals and electronics.

Discover how our box compression test machines can elevate your packaging standards and protect your products from damage. Contact us today to learn more.
