Drop Weight Impact Testing: A Critical Test for Material Durability

Drop weight impact testing is essential in evaluating the durability and performance of materials used in various industries, including packaging, medical devices, pharmaceuticals, and more. This testing method measures the resistance of materials, such as plastic films, to impact from a free-falling weight, providing crucial data on their strength and durability.

Understanding Drop Weight Impact Testing

Drop weight impact testing involves dropping a weight from a specific height onto a material sample to assess its impact resistance. The test helps determine the energy required to cause failure in the material under specified conditions. This method is widely used to ensure the quality and reliability of materials in demanding applications.

The Importance of Drop Weight Impact Testing

  1. Quality Assurance: Ensures materials meet required standards for impact resistance, crucial for packaging and medical devices.
  2. Cost Efficiency: Identifies materials that can withstand transportation and handling, reducing the risk of damage and associated costs.
  3. Safety Compliance: Helps manufacturers adhere to safety standards, ensuring the materials used are robust and reliable.

Standards for Drop Weight Impact Testing

To ensure consistency and reliability, drop weight impact testing follows specific standards such as ISO 7765-1 and ASTM D1709.

  • ISO 7765-1: This standard specifies the method for determining the impact resistance of plastic films and sheets using a free-falling dart. It outlines the test procedures, including sample preparation, testing conditions, and result interpretation.
  • ASTM D1709: Similar to ISO 7765-1, this standard provides guidelines for performing drop weight impact tests on plastic films. It includes detailed instructions on equipment setup, test execution, and data analysis.

Plastic Film Impact Testing Machine

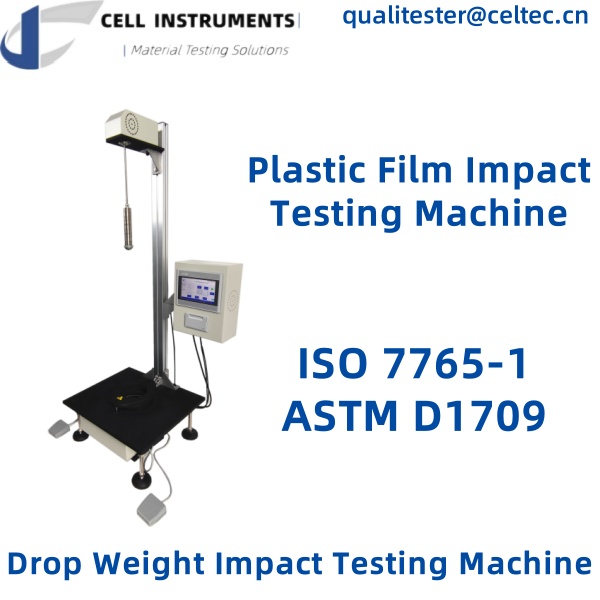

A plastic film impact testing machine, like the FDT-01 Falling Dart Impact Tester from Cell Instruments, is designed to perform drop weight impact tests accurately and efficiently. This machine is essential for industries that rely on high-quality materials for their products.

Drop Weight Impact Testing A Critical Test for Material Durability

Key Features of the FDT-01 Falling Dart Impact Tester

  • PLC Control and Touch Screen Operation: Ensures stable and precise control of the testing process.
  • Multiple Test Methods: Offers methods A and B, allowing flexibility in testing based on specific requirements.
  • Automatic Calculation: The system automatically calculates impact results, reducing the risk of human error.
  • Safety Features: Includes electromagnetic suspension and automatic falling mechanisms for safe operation.

The FDT-01 Falling Dart Impact Tester is ideal for testing plastic films, sheets, composite films, foils, and paper with thicknesses less than 1mm. Its advanced features make it a reliable choice for ensuring material quality and compliance with international standards.

How to Perform Drop Weight Impact Testing

  1. Sample Preparation: Cut the material sample to the required dimensions and condition it as per the standard guidelines.
  2. Setup: Install the sample on the testing machine and set the test parameters, including weight and drop height.
  3. Testing: Perform the test by dropping the weight onto the sample. Repeat the test with varying weights to determine the material’s impact resistance.
  4. Data Analysis: Analyze the test results to calculate the energy required to cause failure. Compare the results with the specified standards to assess material quality.

Applications of Drop Weight Impact Testing

Drop weight impact testing is crucial for various industries, including:

  • Packaging: Ensures the materials used can withstand impacts during transportation and handling.
  • Medical Devices: Verifies the durability of materials used in medical packaging and devices, ensuring they remain intact during use.
  • Pharmaceuticals: Tests the impact resistance of packaging materials to protect sensitive products.
  • Textiles and Foils: Assesses the durability of materials used in textile and foil applications, ensuring they can endure everyday wear and tear.

FAQ

  1. What is drop weight impact testing? Drop weight impact testing measures the resistance of materials to impact from a free-falling weight, providing data on their durability and strength.
  2. Why is drop weight impact testing important? It ensures materials meet quality standards, reduces costs associated with material failure, and ensures compliance with safety regulations.
  3. What standards are followed in drop weight impact testing? Common standards include ISO 7765-1 and ASTM D1709, which provide guidelines for conducting and analyzing the tests.
  4. What materials can be tested using drop weight impact testing? Materials such as plastic films, sheets, composite films, foils, and paper with thicknesses less than 1mm are typically tested.
  5. How does the FDT-01 Falling Dart Impact Tester improve testing accuracy? The FDT-01 features PLC control, touch screen operation, automatic result calculation, and safety mechanisms, ensuring precise and reliable testing.

By adhering to these guidelines and utilizing advanced testing equipment like the FDT-01 Falling Dart Impact Tester from Cell Instruments, industries can ensure the durability and reliability of their materials, enhancing product quality and performance.
