ASTM F2054 - Seal Burst Strength Test of Flexible Food Packages

What is Bursting Strength?

Packaging plays a critical role in protecting food products from contamination and spoilage. One of the key performance indicators of flexible food packages is bursting strength, which measures the maximum internal pressure a package can withstand before rupturing. The seal burst strength test, as defined by ASTM F2054, assesses the durability and integrity of seals in flexible packages to prevent leaks and failures during processing, storage, and transportation.

Overview of ASTM F2054

ASTM F2054 is a standardized test method designed to evaluate the burst strength of sealed flexible packages. This test method determines the internal pressure at which the package ruptures, typically at the weakest point in the seal. By applying controlled air pressure, ASTM F2054 helps manufacturers ensure that their packaging maintains structural integrity under pressure variations.

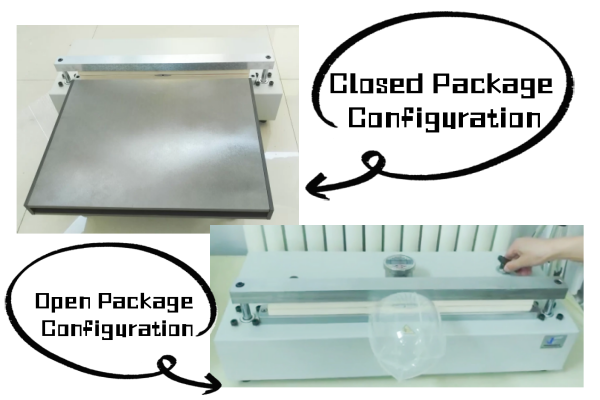

Test Configurations

ASTM F2054 describes two test configurations based on the sealing condition of the package:

Open Package Configuration: The package is sealed on three sides, leaving one side open. This configuration is mainly used during the initial manufacturing stage.
Closed Package Configuration: The package is fully sealed on all four sides, allowing testing of the final product.

Importance of ASTM F2054 in Packaging Quality Assurance

Enhancing Package Integrity
The primary objective of ASTM F2054 is to ensure that flexible packages can withstand pressure changes without seal failure. This is especially crucial in food packaging, where leaks can lead to contamination and spoilage.
Compliance with Safety Standards
By following ASTM F2054, manufacturers can align their packaging processes with regulatory and quality assurance requirements. This compliance helps prevent recalls and customer complaints.
Performance Evaluation
The test provides valuable data on minimum burst strength, which assists manufacturers in optimizing package design, material selection, and sealing processes.
Prevention of Seal Failures During Distribution
Pressure fluctuations occur during transportation, storage, and sterilization. ASTM F2054 ensures that packages can endure these changes, reducing the risk of leaks or bursts in transit.

ASTM F2054 Test Method and Procedure

Equipment Requirements

Seal burst strength testing equipment, the following apparatus is required:

Air supply and pressure regulator: Generates the required air pressure inside the package.
Pressure sensing mechanism: Detects the internal pressure at the rupture point.
Restraining plates: Two rigid, parallel plates that limit package expansion while leaving the seal area unrestricted.
Pressurization nozzle: Inserts air into the package to create internal pressure.

Testing Steps

1. Sample Preparation

Condition the package for at least 72 hours before testing under standard conditions.
Record package specifications, including material type, seal configuration, and dimensions.

2. Open-Package Test

Insert the package between restraining plates, ensuring minimal unrestrained areas.
Insert the pressurization nozzle into the open end of the package.
Seal the open end using a clamping mechanism to ensure an airtight fit.
Gradually increase internal pressure until the package bursts.
Record the burst pressure value.

3. Closed-Package Test

Place the fully sealed package within the restraining plates.
Insert the pressure nozzle through a puncture in the package.
Apply internal pressure gradually until rupture occurs.
Record the burst pressure and failure location.

Key Factors Affecting Test Results

Material and Seal Quality: Variations in materials and sealing techniques can affect bursting strength.
Environmental Conditions: Temperature and humidity may impact package performance.
Test Equipment Parameters: Differences in airflow rate, sensor sensitivity, and restraining plate rigidity can influence results.
