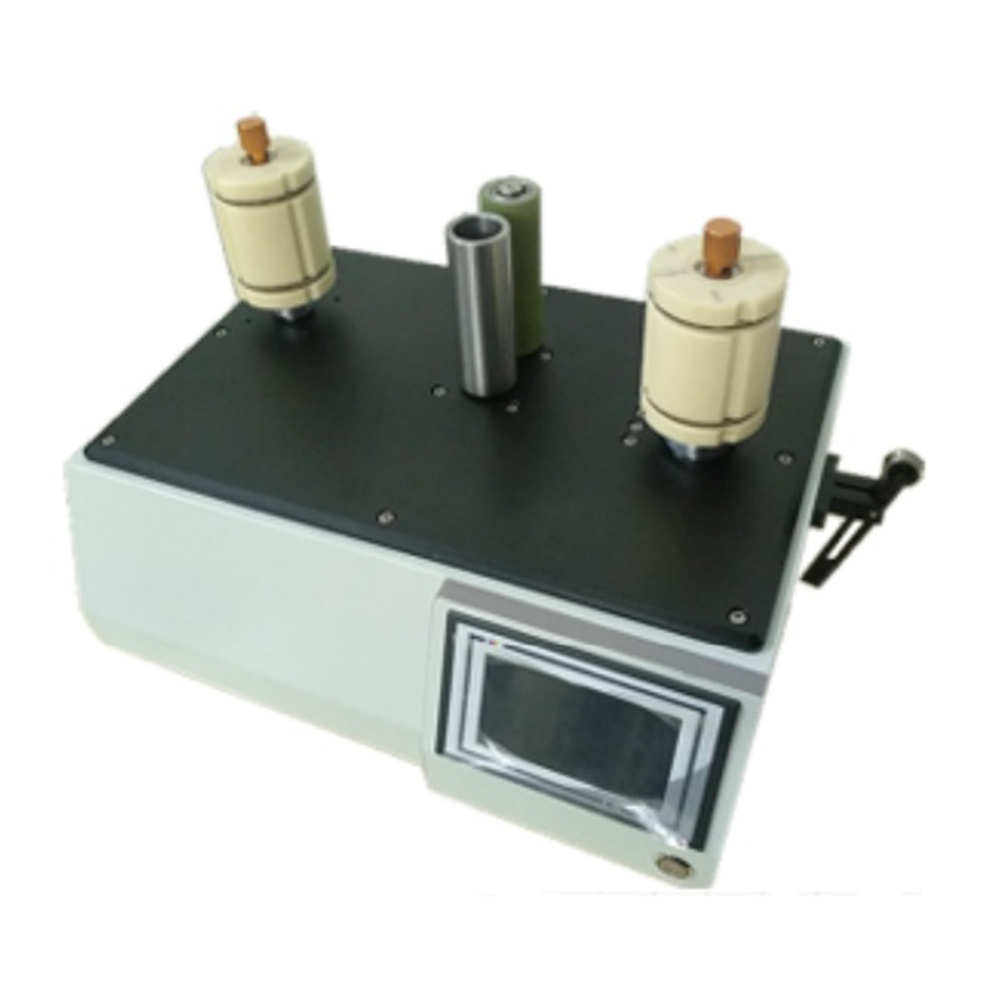

HSU-01 High Speed Unwinding Tester

The HSU-01 High Speed Unwinding Tester is an advanced instrument designed to measure the force required to unwind adhesive tapes from their rolls at a controlled, high speed. This innovative device is critical for quality assurance, ensuring that adhesive tapes meet industry standards and perform reliably during application. From packaging to automotive, medical, and electronics industries, the HSU-01 is the ideal solution for unwinding force testing.

The HSU-01 High Speed Unwinding Tester is an advanced instrument designed to measure the force required to unwind adhesive tapes from their rolls at a controlled, high speed. This innovative device is critical for quality assurance, ensuring that adhesive tapes meet industry standards and perform reliably during application. From packaging to automotive, medical, and electronics industries, the HSU-01 is the ideal solution for unwinding force testing.

Applications

Unwinding force testing evaluates the behavior of adhesive tapes under realistic conditions. This ensures consistent quality and compliance with industry standards across applications such as:

  • Packaging: Ensuring tape performance during sealing and storage.
  • Medical Devices: Guaranteeing adhesive reliability in critical healthcare applications.
  • Automotive: Assessing tape durability for assembly and repair.
  • Electronics: Validating tapes for insulation and component protection.

Standards and Test Methods

The HSU-01 High Speed Unwinding Tester complies with leading industry standards:

PSTC-13:

The gold standard for testing adhesive tapes, ensuring accurate measurement of unwind force at high speeds to maintain product consistency.

ASTM D1000:

Defines test methods for pressure-sensitive tapes used in electrical and electronic applications.

EN 12026:

Covers the durability of adhesive tapes in European markets.

AFERA 4008:

Standard for evaluating adhesive tape performance under European guidelines.

Test Methods:

  • Secure one end of the tape to a rotating spindle or mandrel to simulate real-world unwinding.
  • The other end is anchored, and the tester unwinds the tape at a preset speed (measured in IPM or mm/s).
  • Measure and record the force required to maintain movement, including maximum and average forces.

Key Features of HSU-01 High Speed Unwinding Tester

Advanced Design and Functionality

The HSU-01 is a purpose-built instrument for precision testing. It provides real-time data and detailed insights into the behavior of adhesive tapes at high speeds.

Technical Specifications:

Specimen Size Reel Diameter 75mm, Width 75mm. Max Outer Dia 300mm (customization available)
Loadcell 10kg, 20kg and 50kg are optional
Force Resolution 0.01N
Motor Servo Type
Control PLC and HMI touch screen
Power AC 110~220V 50Hz

Efficiency and Reliability

  • Stable testing at predefined high speeds.
  • Accurate measurements ensure product quality and compliance with standards like PSTC-13.
  • Robust servo motor and advanced control systems deliver consistent results.

Advantages of the HSU-01

Enhanced Quality Assurance

By precisely measuring unwind force, the HSU-01 helps manufacturers maintain high-quality standards, ensuring their products meet customer expectations and industry requirements.

Customization and Flexibility

The tester can be tailored to accommodate various tape sizes, load cell capacities, and application needs.

User-Friendly Operation

With PLC control and an HMI touch screen, the HSU-01 ensures easy setup, operation, and data analysis.

FAQs

1. What is the primary function of the HSU-01 High Speed Unwinding Tester?
The HSU-01 measures the force required to unwind adhesive tapes at high speeds, ensuring quality and performance consistency.

2. Why is unwinding force testing essential?
Unwinding force testing guarantees adhesive tape reliability during application, helping manufacturers meet industry standards like PSTC-13.

3. Which industries use unwinding force testing?
Industries including packaging, automotive, medical, and electronics rely on this testing to ensure product performance.

4. What sets the HSU-01 apart from other testers?
The HSU-01 offers unparalleled accuracy, customizable options, and intuitive controls, backed by PLC and HMI technology.

5. Can the HSU-01 be customized?
Yes, the HSU-01 can be tailored to meet specific testing requirements, including reel sizes, load cell capacities, and test speeds.

The HSU-01 High Speed Unwinding Tester is a cutting-edge solution for unwinding force testing. Compliant with standards like PSTC-13, it ensures adhesive tape performance and quality across various industries. With its advanced features, user-friendly controls, and customization options, the HSU-01 is the ultimate tool for manufacturers committed to excellence in quality control.
