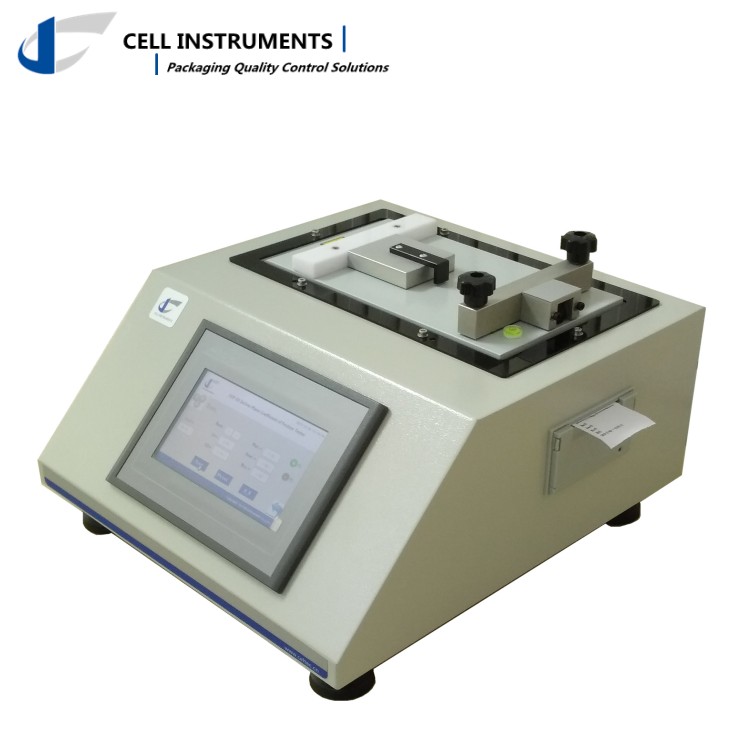

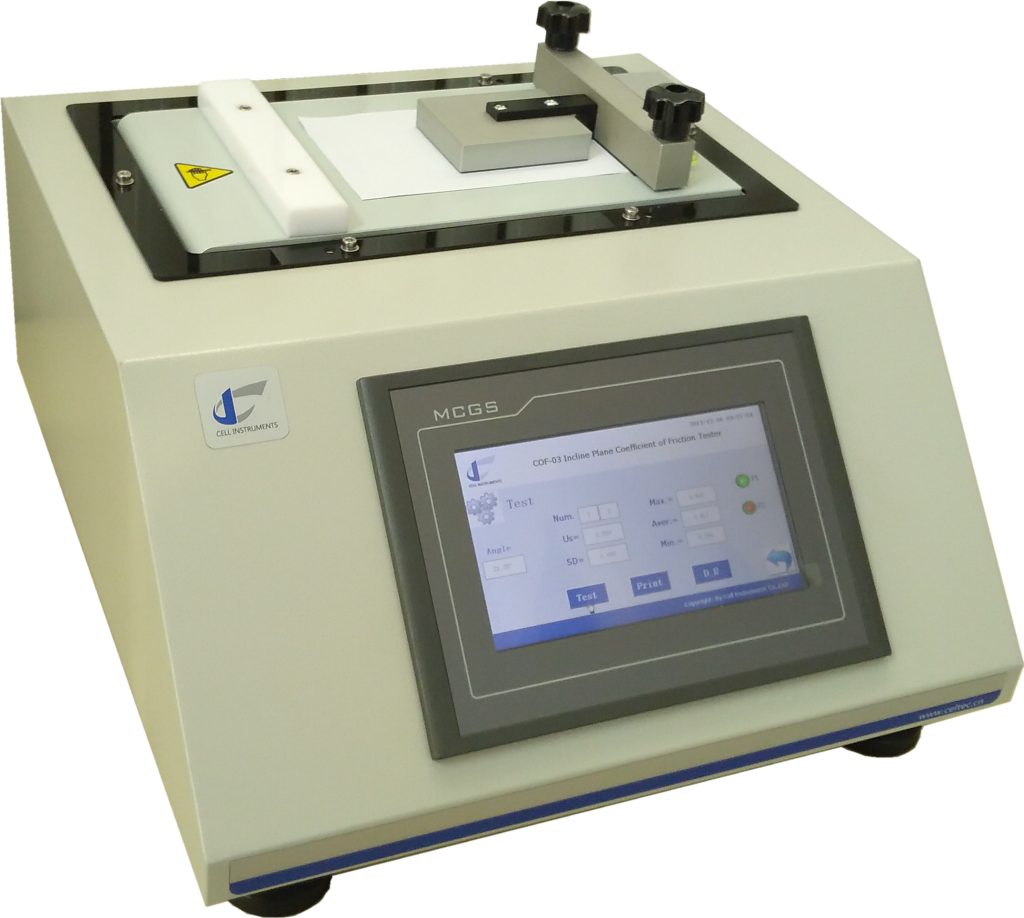

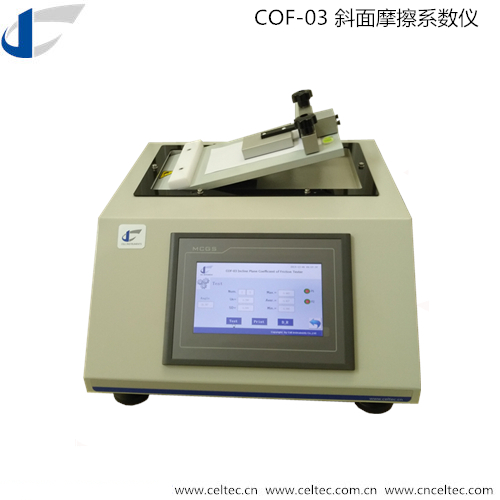

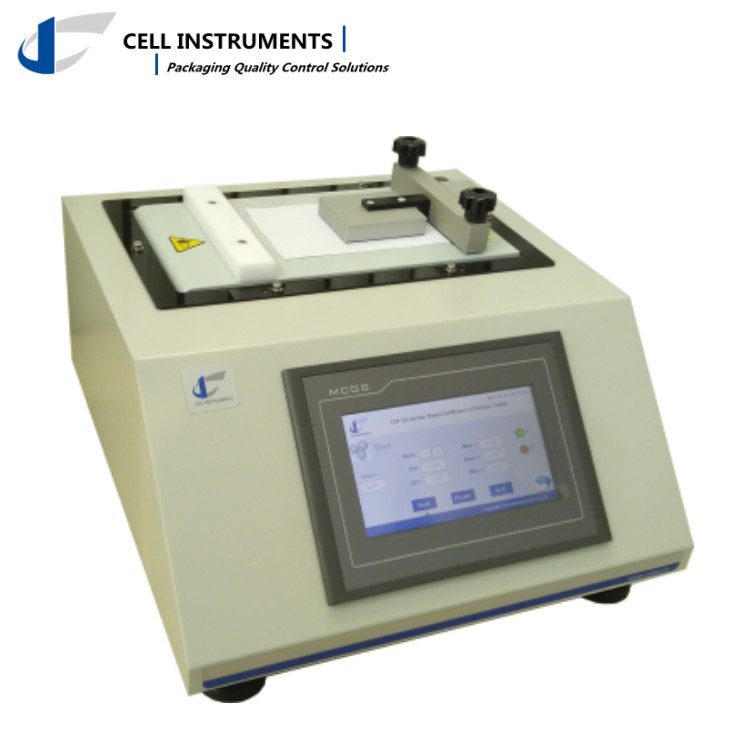

COF-03 Inclined Packaging Bag Friction Coefficient Detection Machine

Incline plane coefficient of friction tester measures the static coefficient of friction of various materials using a variable inclined plane and a sliding block.

Application

Incline plane coefficient of friction tester measures the static coefficient of friction of various materials using a variable inclined plane and a sliding block. It measures the static COF of plastic films, sheets, rubber, paper, board, woven , fabrics, wood, coatings, brake pads, etc.

Principle



The static COF is measured by the angle at which one test surface begins to slide against another inclined surface as the incline is increased at a constant and preset rate. The test result is numerically equivalent to the tangent of that angle.

Features
  • PLC control and HMI touch screen operated
  • Real time display of max, min, average and SD of test result
  • In accordance with multiple international standards
  • Both angel and static COF (tangent value) can be measured
  • Microprint of easy printing of test result
  • RS232 and profession software (optional)
Technical Specification

Angle range                         0° ~ 60°

Accuracy                              0.01°

Stroke                                  0.1°/s ~ 10.0°/s

Sled                                     200g, 235g, or 1300g(choose one or others)
