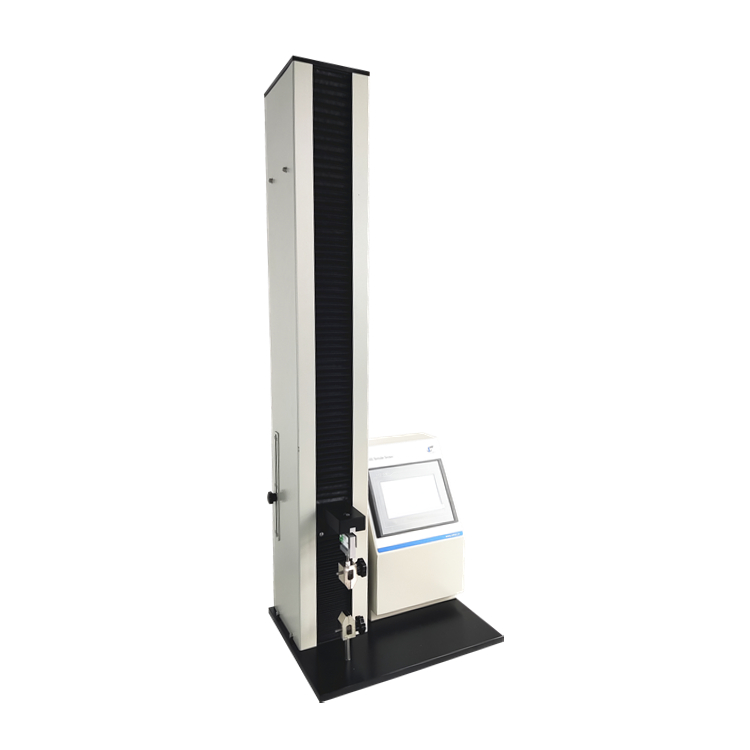

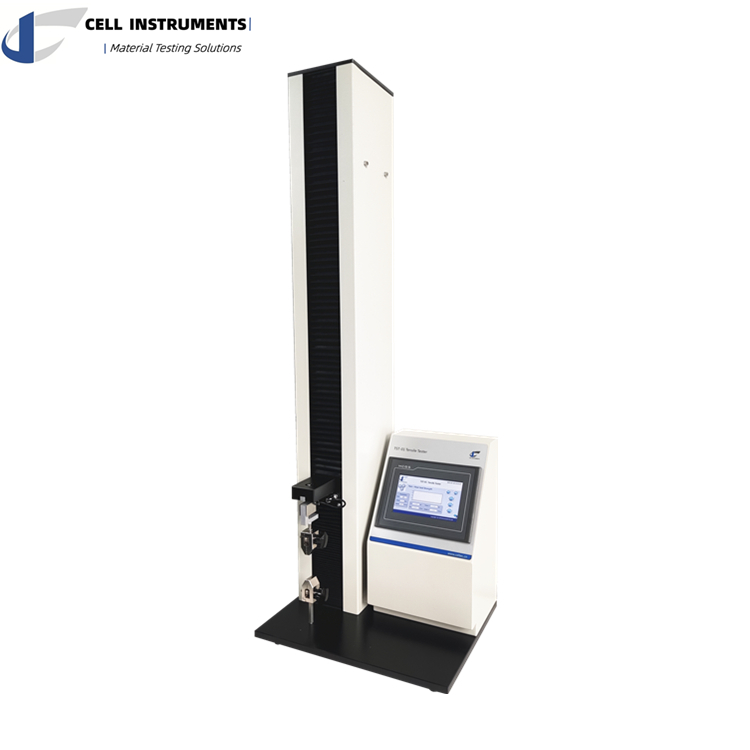

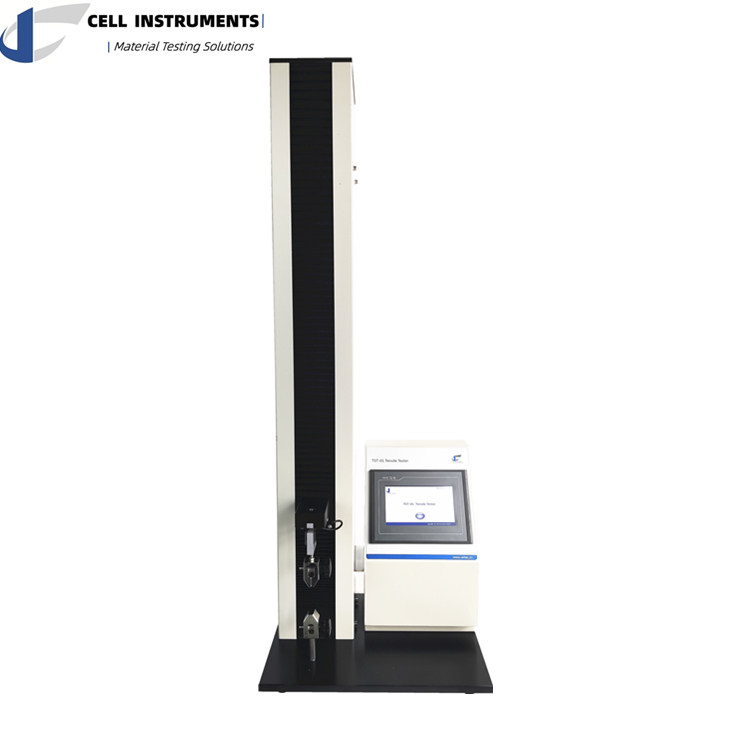

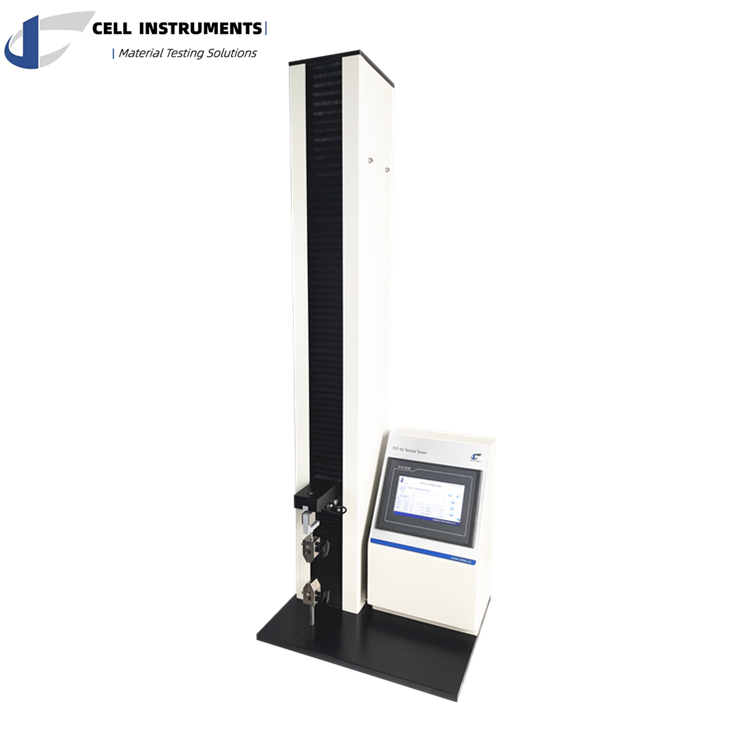

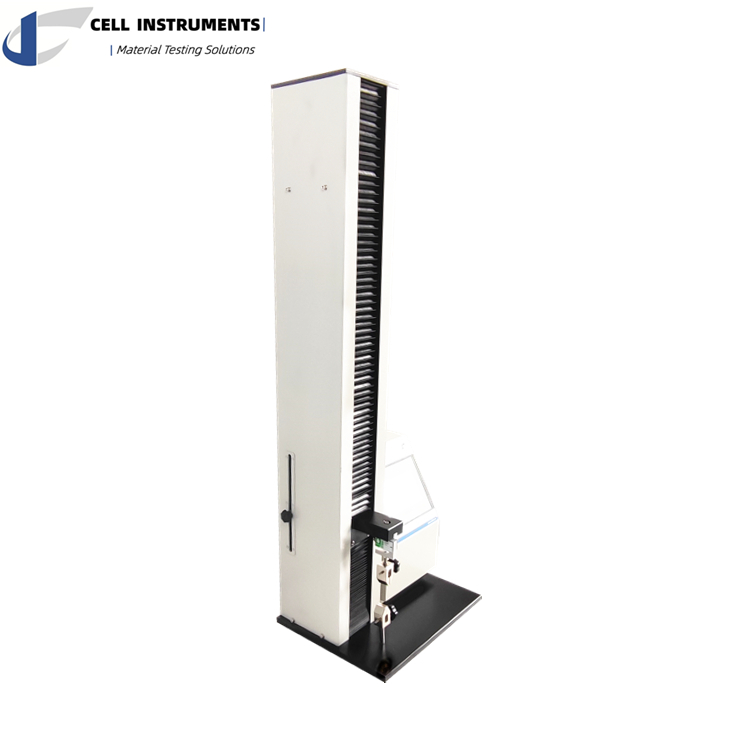

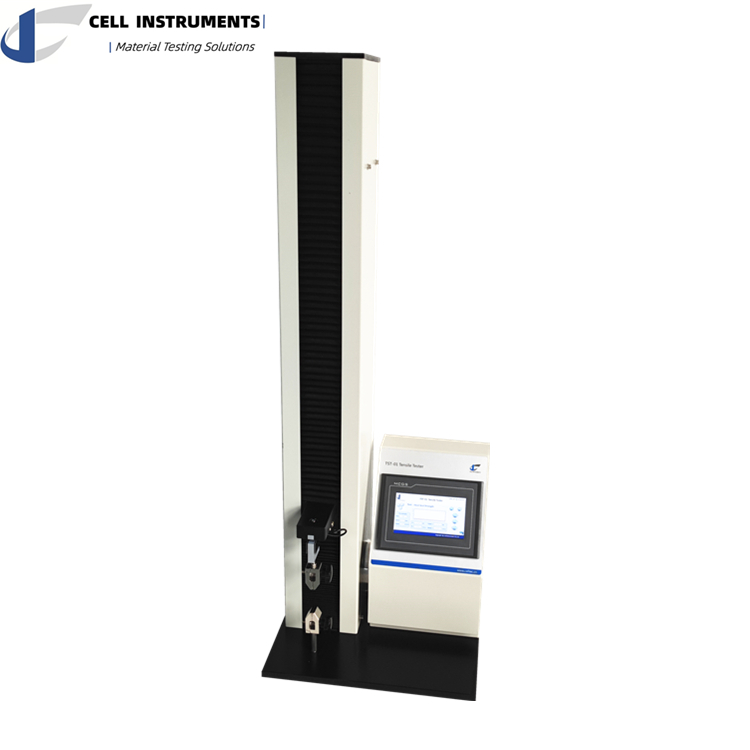

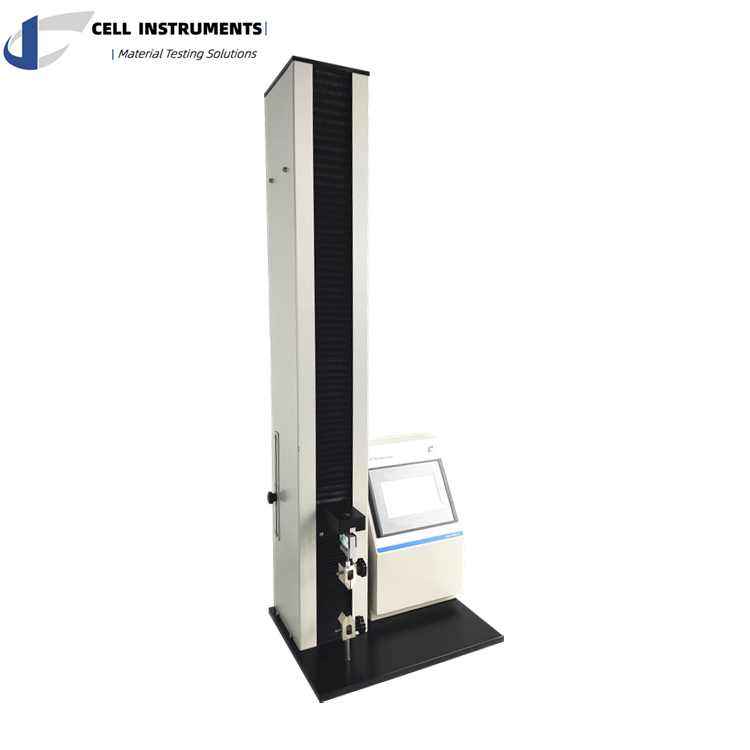

Tensile Tester TST-01
Tensile Tester Application
TST-01Tensile Tester can be used to measure tensile, peeling, deformation, tearing, heat sealing, adhesive, puncture force, opening force and other performance of plastic films (needs different clamps or fixtures), composite materials, soft package materials, plastic flexible tube, adhesives, adhesive tape, label stickers, medical plasters, release paper, protection films, combined caps, aluminum foil, diaphragm, back sheets, non-woven fabrics, rubber, paper, etc.
Tensile Tester Technical Features
It’s a PLC controlled unit (industrial level stable) and HMI touch screen operated. Precision ball lead screw mechanism ensures good and steady speed and displacement control. Its specially designed program can be used for testing of break, tension, elongation, seal strength, 90°peeling, 180° peeling, tearing.
- 7 inch TFT touch screen operation
- PLC control
- Precision ball lead screw
- Test speed adjustable.
- Multiple fixtures available
- Limiting device and automatic returning function
- Multiple test items available.
- Microprinter(optional)
Tensile Tester Main Parameters
- Test Range 0-500N (Standard, 50N,100N,200N are optional)
- Stroke 800mm (other strokes available)
- Test Speed 1~500mm/min
- Displacement Accuracy 0.01mm
- Accuracy 0.5% F.S.
- Sample Width 27mm (other optional)
- Control PLC and human machine interface
- Data Output Screen, Microprinter (optional), RS232(optional)
Tensile Tester Major Standards
ISO 37, ASTM D882, ASTM E4, ASTM D3330, ASTM F904,ASTM F88, ASTM D1938, JIS P8113
ASTM F904
The Tensile Tester aligns with ASTM F904, a crucial standard in the field of testing instruments. ASTM F904 specifies the test method for measuring the peel strength of adhesive bonds between rigid substrates using a T-peel test configuration.
This standard ensures that the equipment meets rigorous criteria for evaluating the strength and integrity of adhesive bonds, making the TST-01 an ideal choice for industries requiring adherence to ASTM F904 standards.
