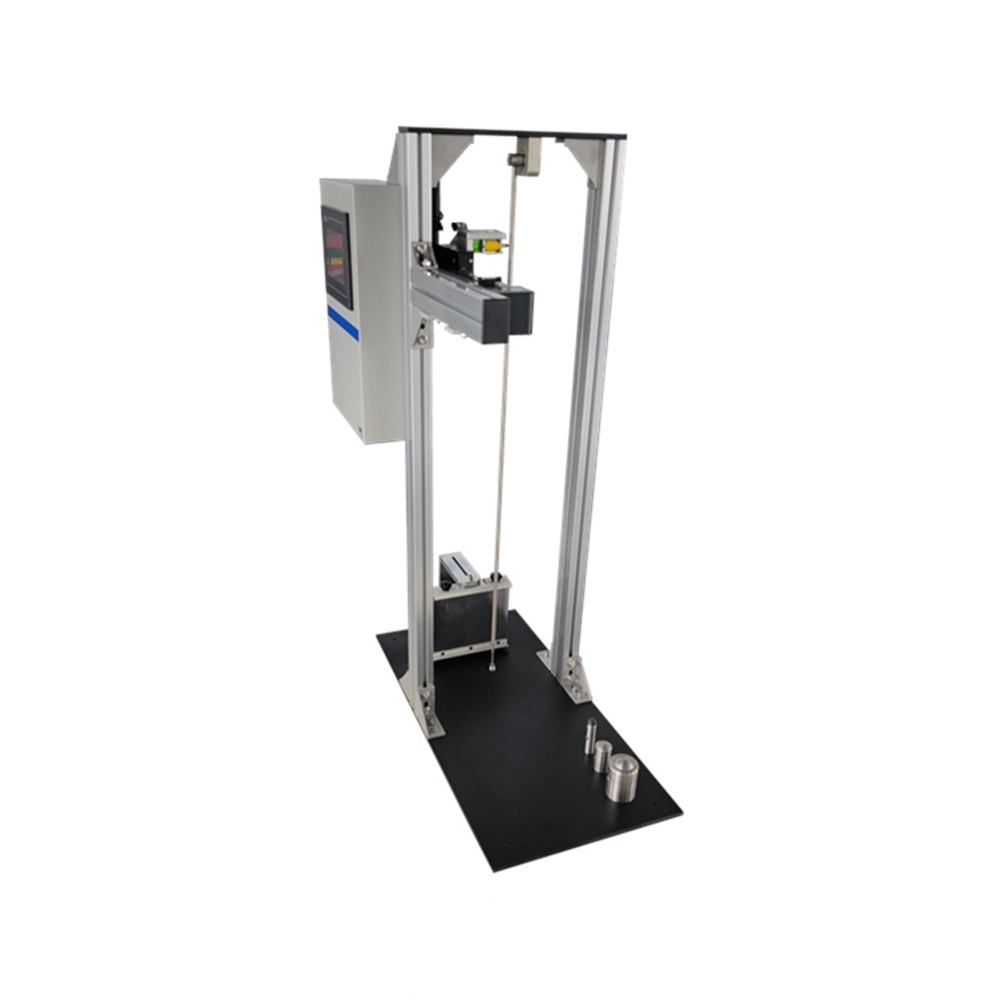

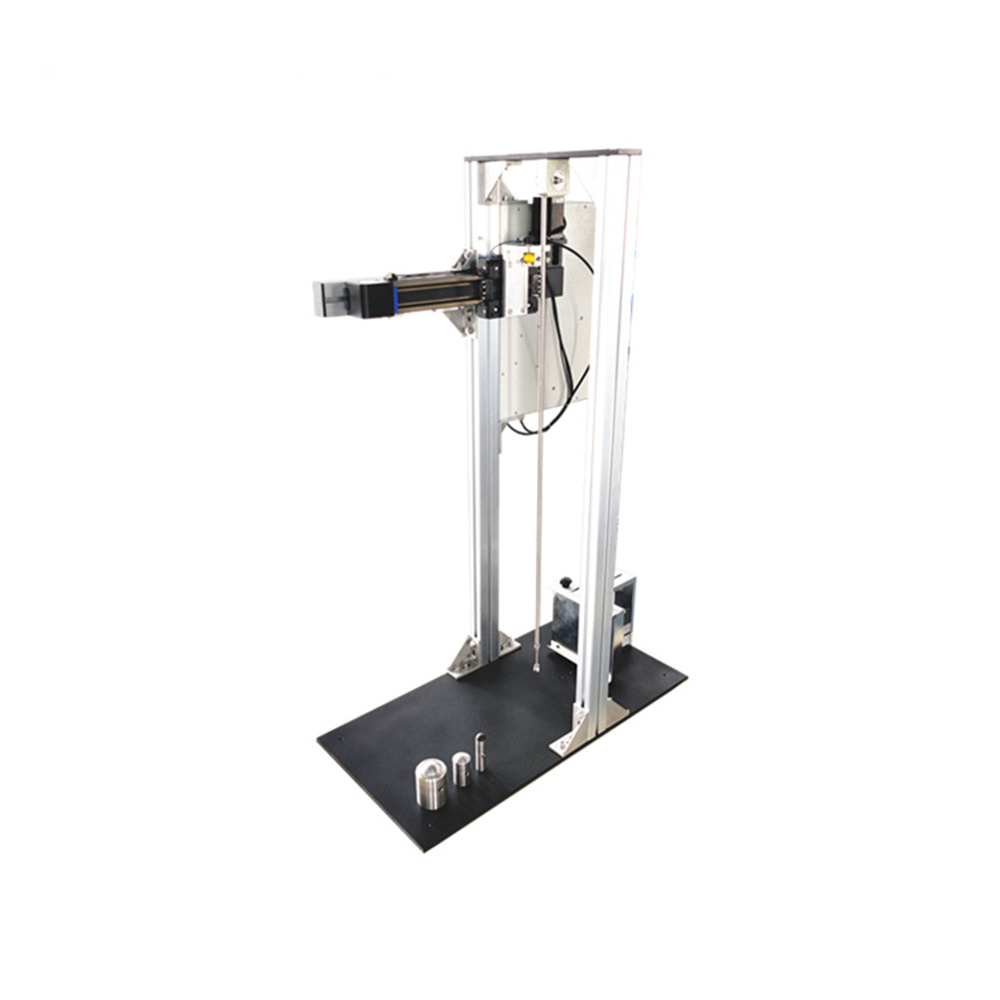

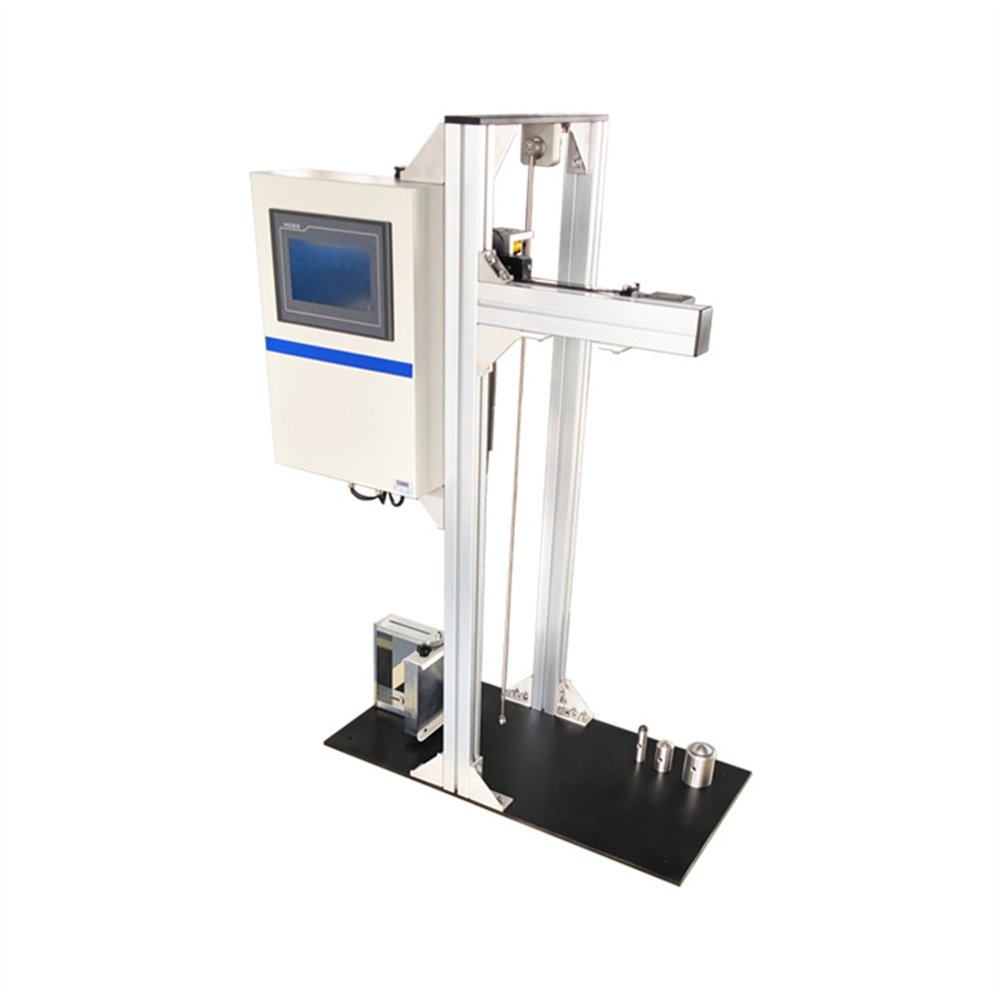

PHS-01 Electrical Equipment Pendulum Impact Tester

The Pendulum Hammer Impact Tester (PHS-01) is a specialized mechanical testing instrument designed to assess the durability and impact resistance of materials and products. This tester simulates real-world mechanical impacts, allowing manufacturers to evaluate how well their products can withstand physical stress. Impact testing is essential for ensuring the safety and reliability of products, particularly in industries where items are exposed to frequent mechanical shocks or rough handling, such as packaging, automotive, electronics, and medical devices.

Introduction to Pendulum Hammer Impact Testing

The Pendulum Hammer Impact Tester (PHS-01) is a specialized mechanical testing instrument designed to assess the durability and impact resistance of materials and products. This tester simulates real-world mechanical impacts, allowing manufacturers to evaluate how well their products can withstand physical stress. Impact testing is essential for ensuring the safety and reliability of products, particularly in industries where items are exposed to frequent mechanical shocks or rough handling, such as packaging, automotive, electronics, and medical devices.

Pendulum impact testing uses the principle of a pendulum hammer, which is lifted to a predetermined height and released to strike a specimen. The tester measures how the sample responds to various energy levels, helping determine its robustness and suitability for specific applications.

Test Methods of Pendulum Hammer Impact Tester

The PHS-01 Pendulum Hammer Impact Tester uses an automated pendulum hammer system to perform impact tests on various specimens. The test is straightforward:

  • Sample Clamping: The specimen is securely mounted on the testing fixture, ensuring it remains in place during testing.
  • Impact Testing: The hammer is automatically lifted to the desired impact height, and upon activation, it is released to strike the sample with a specified energy level.
  • Energy Settings: The energy levels can be adjusted from 0.14J to 5J, depending on the type of material or product being tested.
  • Test Cycle: The test is performed with a single press of a button via the HMI (Human-Machine Interface) touchscreen, automating the process and minimizing human error.

This testing method allows manufacturers to evaluate the material’s resilience to impact forces, ensuring it meets safety standards for durability in practical conditions.

Pendulum Hammer Impact Tester and IEC 60068-2-75

IEC 60068-2-75 Standard Overview

The IEC 60068-2-75 is an international standard that outlines test methods to assess the mechanical robustness of equipment and products under mechanical stress or impact. Specifically, this standard provides guidelines for determining a specimen’s ability to withstand rigorous impact forces, which is crucial for products used in environments where mechanical impact is common.

The IEC 60068-2-75 standard defines three specific methods for conducting impact tests, ensuring that products are resilient and reliable under various operational and environmental conditions. Adhering to this standard is crucial for manufacturers aiming to meet global safety and quality assurance benchmarks.

How PHS-01 Pendulum Hammer Striking Tester Meets IEC 60068-2-75

The PHS-01 Pendulum Hammer Impact Tester is fully compliant with the IEC 60068-2-75 standard, providing accurate and repeatable results for impact testing. The tester’s automatic control system, adjustable energy levels, and versatile testing heights make it ideal for simulating a wide range of impact scenarios, as specified in the IEC 60068-2-75 standard. With the ability to assess mechanical robustness, the PHS-01 helps manufacturers ensure their products meet international safety requirements.

Key Features of PHS-01 Pendulum Hammer Impact Tester

  • High Precision Control: The PHS-01 uses a PLC control system and an HMI touchscreen interface, offering ease of operation and precise control over impact parameters.
  • Automatic Pendulum Lifting and Release: The pendulum hammer is automatically lifted to the desired height and released with electromagnetic precision, ensuring consistent impact energy.
  • Adjustable Impact Energy: The tester supports a range of impact energies, from 0.14J to 5J, making it suitable for testing a wide variety of materials and products.
  • Customizable Testing Heights: The height of fall is adjustable, ranging from 56mm to 400mm, offering flexibility in testing different impact scenarios.
  • Striking Elements: The tester offers different striking elements that can be swapped based on testing requirements, further enhancing its versatility.
  • Dual Language Display: The system supports dual language display, making it user-friendly for international customers.

Application Areas of Pendulum Hammer Impact Tester

The Pendulum Hammer Impact Tester is used across various industries to evaluate the impact resistance and mechanical robustness of products and materials:

  • Packaging: Ensures packaging materials, including corrugated boxes and plastic containers, can withstand impacts during transportation and handling.
  • Electronics: Assesses the durability of electronic components, such as circuit boards and casings, to ensure they can endure accidental drops and mechanical shocks.
  • Medical Devices: Verifies the impact resistance of medical equipment and its packaging, ensuring patient safety and product reliability.
  • Automotive Parts: Tests components like bumpers and interior fittings to ensure they can withstand impacts and harsh environmental conditions.
  • Toys and Consumer Products: Confirms that everyday consumer items meet safety standards for durability, especially in children’s products.

Standards Compliance

The PHS-01 Pendulum Hammer Impact Tester complies with the following industry standards:

  • IEC 60068-2-75: International standard for environmental testing, focusing on mechanical stress testing.
  • GB/T 2423.55: The Chinese national standard for impact testing, ensuring products meet local regulatory requirements.

By meeting these standards, the PHS-01 guarantees that manufacturers can accurately assess their products’ resilience and ensure compliance with global safety and reliability criteria.

Main Parameters

Impact Energy 0.14J, 0.2J, 0.35J, 0.5J, 0.7J, 1J, 2J, 5J
Equivalent Mass 0.25,0.25,0.25,0.25,0.25, 0.25,0.5,1.7kg
Height of Fall 56,80,140,200,280,400,400,300mm
Plywood 175*175mm, 8mm thickness by user
Power AC 110~220V 50/60Hz
Control PLC and human machine interface

The Pendulum Hammer Impact Tester (PHS-01) is an essential tool for manufacturers who need to ensure the durability and mechanical robustness of their products. By simulating real-world impact scenarios and adhering to international standards like IEC 60068-2-75, the PHS-01 provides accurate, reliable testing results. Whether for packaging, electronics, medical devices, or automotive parts, the PHS-01 helps guarantee product safety and performance, making it an invaluable addition to any quality control lab or manufacturing facility.
