How to Conduct a Plastic Bottle Perpendicularity Test with a Bottle Perpendicularity Tester


Conducting a plastic bottle perpendicularity test is crucial for ensuring that bottles stand upright and maintain their structural integrity. This test is essential for industries such as food, cosmetics, and pharmaceuticals, where packaging standards are critical. In this article, we will guide you through the process of performing a perpendicularity test using a bottle perpendicularity tester, highlighting key steps and providing tips for accurate results.

What is a Plastic Bottle Perpendicularity Test?

A plastic bottle perpendicularity test measures the vertical alignment of a bottle. This test determines if a bottle’s axis is perpendicular to its base, ensuring the bottle can stand straight without tilting. Proper vertical alignment is vital for automated filling lines and consumer satisfaction.

Importance of the Plastic Bottle Perpendicularity Test

  • Quality Control: Ensures bottles meet industry standards.
  • Consumer Safety: Prevents spillage and product damage.
  • Efficiency: Enhances performance on automated production lines.
  • Brand Reputation: Maintains product aesthetics and functionality.

Tools Needed

To conduct a plastic bottle perpendicularity test, you will need:

  1. Bottle Perpendicularity Tester: Such as the Cell Instruments PER-01 Bottle Verticality Tester.
  2. Dial Gauge: For measuring deviations.
  3. Rotating Plate: To secure and rotate the bottle.

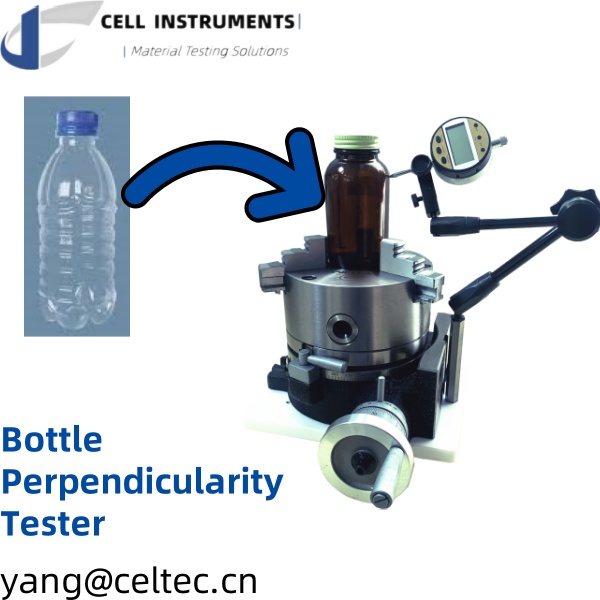

plastic bottle perpendicularity tester

Steps to Conduct a Plastic Bottle Perpendicularity Test

1. Prepare the Bottle

Ensure the bottle is clean and free from any deformation or damage. This step is crucial for accurate testing.

2. Secure the Bottle

Place the bottle securely onto the rotating plate of the bottle perpendicularity tester. Ensure it is firmly in place to avoid any movement during rotation.

3. Position the Dial Gauge

Adjust the dial gauge so that it makes contact with the mouth of the bottle. Fine-tuning the measuring probe ensures precise readings.

4. Rotate the Bottle

Rotate the bottle a full 360 degrees on the rotating plate. During the rotation, observe the dial gauge readings.

5. Record Readings

Take note of the maximum and minimum values displayed on the dial gauge during the rotation. These readings are essential for calculating the vertical axis deviation.

6. Calculate Vertical Axis Deviation

The vertical axis deviation value is calculated as half of the difference between the maximum and minimum readings. This value indicates the degree of perpendicularity of the bottle.

7. Analyze the Results

Compare the calculated deviation value with industry standards to determine if the bottle meets the required perpendicularity criteria.

Features of the Cell Instruments PER-01 Bottle Verticality Tester

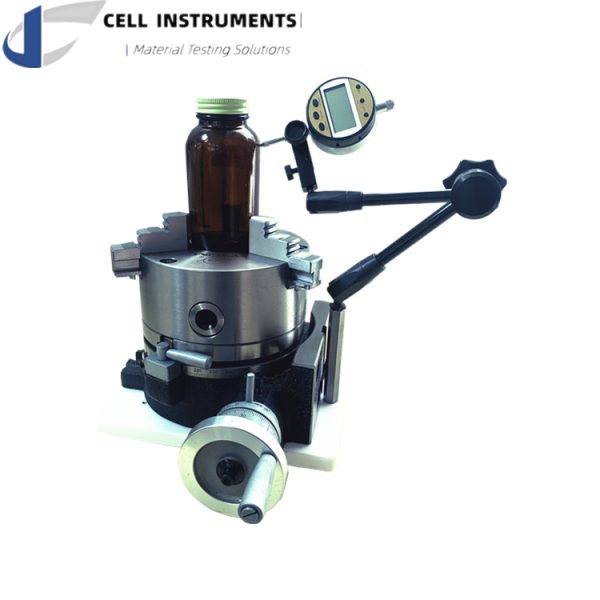

Bottle PerpendicularAity Tester 02

The Cell Instruments PER-01 Bottle Verticality Tester is an advanced instrument designed for accurate perpendicularity testing. Its key features include:

  • Convenient Probe Adjustment: Allows simple and precise fine-tuning of the measuring probe.
  • Exceptional Reading Precision: Achieves high-resolution readings with an accuracy of up to 0.001mm.
  • Consistent Sample Rotation: Ensures stable rotation of the bottle for reliable measurements.
  • Adherence to Sample Specifications: Meets specific sample requirements for both diameter and height.
  • Optional Data Export to PC Excel: Facilitates data management and analysis by exporting test results to Excel.

Technical Data of the PER-01

  • Sample Diameter: 5mm-145mm
  • Test Range: 0-12.7mm
  • Division Value: 0.01 or 0.001mm (optional)
  • Measurable Height: 15mm-300mm (or as required)


1. What is a plastic bottle perpendicularity test?

A plastic bottle perpendicularity test measures the vertical alignment of a bottle to ensure it stands upright without tilting.

2. Why is the perpendicularity test important?

It ensures quality control, consumer safety, efficiency in production lines, and maintains brand reputation.

3. How accurate is the Cell Instruments PER-01 Bottle Verticality Tester?

The PER-01 offers high-resolution readings with an accuracy of up to 0.001mm.

4. Can the test data be exported for further analysis?

Yes, the PER-01 allows optional data export to PC Excel, enhancing data management and analysis capabilities.

5. What industries benefit from perpendicularity testing?

Industries such as food, cosmetics, pharmaceuticals, and packaging benefit from ensuring their bottles have proper vertical alignment.

By following these steps and utilizing the Cell Instruments PER-01 Bottle Verticality Tester, you can ensure your plastic bottles meet the necessary perpendicularity standards, contributing to the overall quality and efficiency of your production processes.
