Anwendung

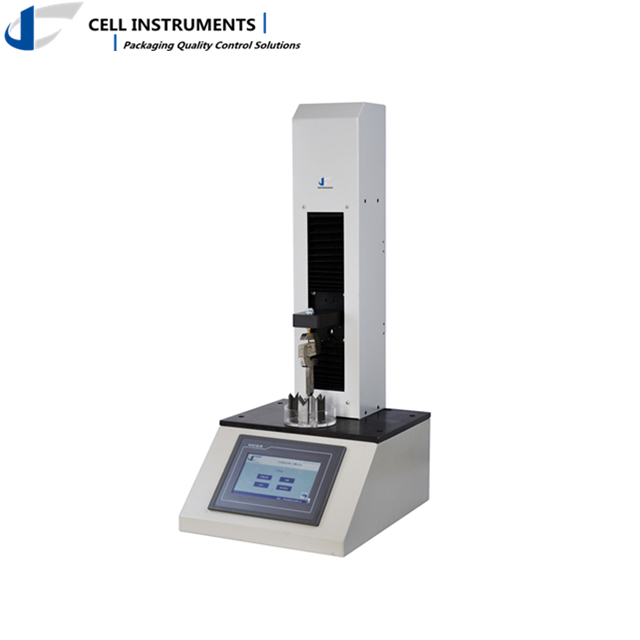

Medical Packaging Tester is designed for the measurement of force properties of a variety of medical packaging materials, such as tensile, compression, strength, tear, opening, penetration, breaking and pull test of polymers, bags, ampoule, rubber stopper, syringe, needle etc.
With multiple fixtures available, this is a versatile and indispensable to medical device, or its packaging facilities.
Vielseitigkeit
- Penetration Test of Rubber Stoppers in Antibiotic Bottles and Hypodermic Needles
- Fracture Strength Test of Ampoule Bottles
- Leak Test of Plastic Packages under External Pressure
- Connection Force between Hypodermic Needle and Needle Hub/cap
- Bottle stiffness test
- Bottle lid puncture test with animated finger
- Sliding Resistance Test of Pistons
Technische Eigenschaften
It’s a PLC controlled unit (industrial level stable) and HMI touch screen operated. Precision ball lead screw mechanism ensures good and steady speed and displacement control. We can specially design program for different applications.
- Test speed is adjustable.
- Dual movement direction tests could be provided

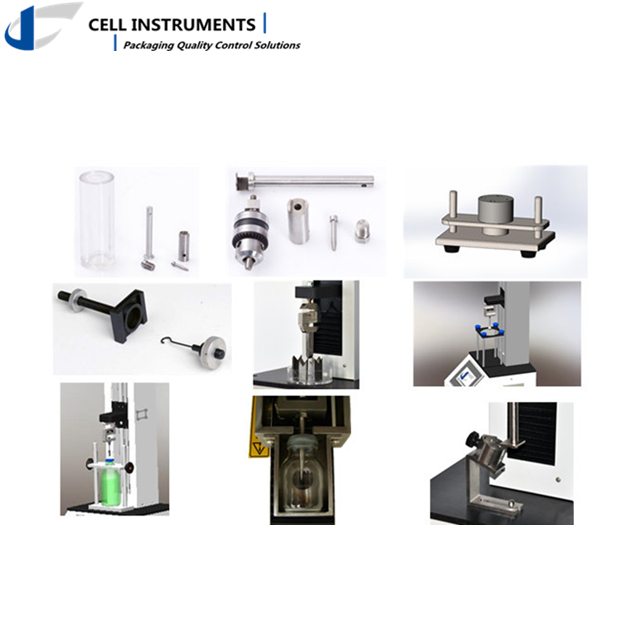

- Multiple fixtures available for pulling and compression tests.
- Limit protection and automatic returning
- Mikrodrucker
- Professional software and RS232 port(optional)
Hauptparameter
Test Range 500N (or as required)
Stroke 200mm (without clamp)
Test Speed 1~500mm/min
Displacement Accuracy 0.01mm
Accuracy 0.5% F.S.
Control PLC and human machine interface
Output Screen, Microprinter, RS232(optional)
Power 110~220V
